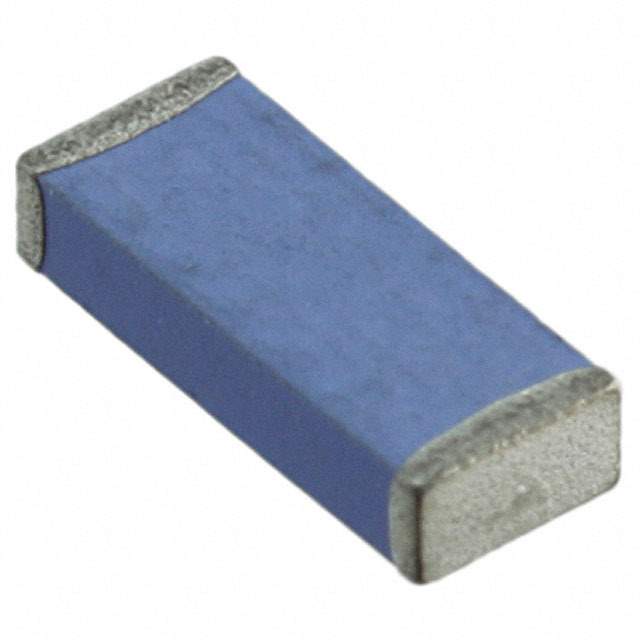

RFANT5220110A2T Real Image
Same model may have multiple batches, images only for reference.

RFANT5220110A2T

Part No RFANT5220110A2T
Manufacturer Walsin Technology Corporation
Catalog RF Antennas
Description 2.4GHZ BT/WLAN CHIP ANT
Datasheet
RFANT5220110A2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Walsin Technology Corporation
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 2dBi
Maximum Power Dissipation 3W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.045" (1.15mm)
Applications Bluetooth, WLAN
Win Source Part Number 119236-RFANT5220110A2T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian RFANT5220110A2T CAD Model

Description

The RFANT5220110A2T is a chip antenna that is manufactured by Walsin Technology Corporation.

  • Applications: Bluetooth and WLAN
  • Frequency Range: 2.4GHz to 2.5GHz
  • Height: 1.15mm
  • Gain: 2dBi
  • Mounting: Surface mount technology
  • VSWR: 2
  • Maximum Power Dissipation: 3W
  • Package: Reel package with 2k pcs
  • Popularity: Medium
  • Supply and Demand: Limited
