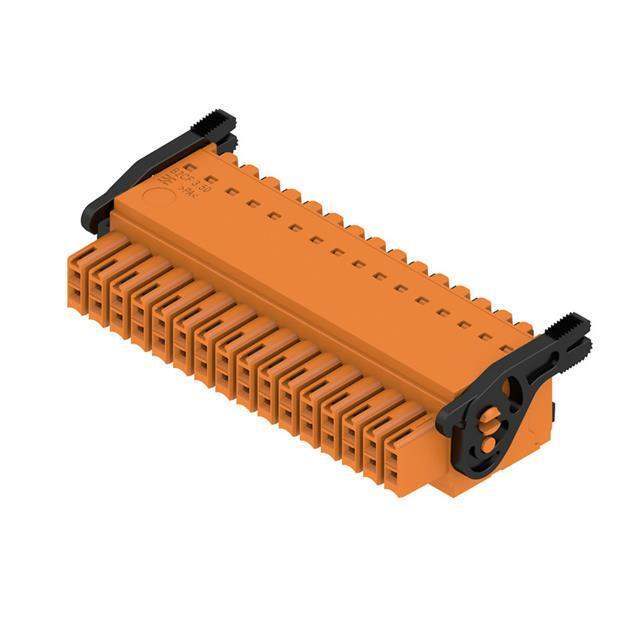

1278190000 Weidmüller
Same model may have multiple batches, images only for reference.

1278190000

Part No 1278190000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 32POS STR 3.5MM
Datasheet
1278190000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310496-1278190000
Manufacturer Weidmüller
Category Connectors, Interconnects > Terminal Blocks > Headers, Plugs and Sockets
Packaging Bulk
Part Status Active
Type Plug, Female Sockets
Number of Positions 32
Positions Per Level 16
Number of Levels 2
Pitch 0.138" (3.50mm)
Termination Style Screwless - Leg Spring, Push-In Spring
Mounting Type Free Hanging (In-Line)
Ultra Librarian 3D Model Ultra Librarian 1278190000 CAD Model

Description

High-temperature-resistant male header for side-by-side mounting. • Touch-safe • Pluggable to the female plug B2CF 3.50 PUSH IN • Plugging direction parallel to PCB (recumbent)• Housingvariants:closed(G)andwith solder flange(LF). • Packed in a carton (BX) • 3.2-mm pin length suitable for reflow and wave soldering
