Same model may have multiple batches, images only for reference.

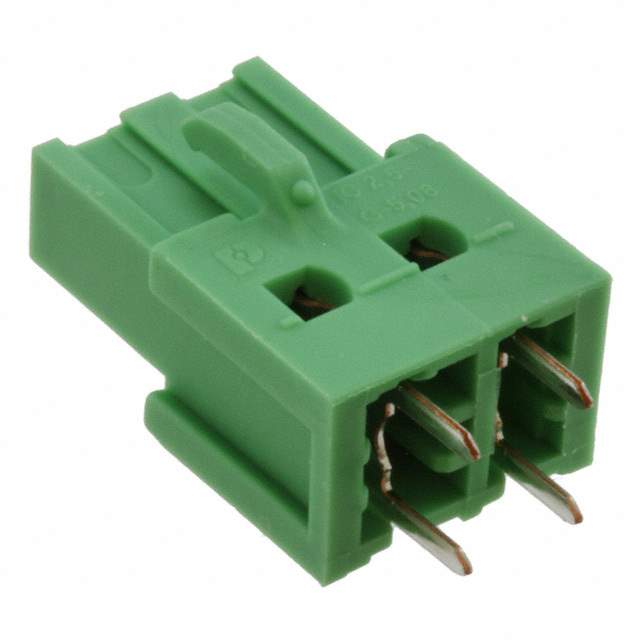

1785942 Real Image
Same model may have multiple batches, images only for reference.

1785942

Part No 1785942
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS VERT 5.08MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON ICV
Package Bulk
Product Status Active
Type Header, Female Sockets
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 10 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Features Retention Latches
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.142" (3.60mm)
Insulation Height 0.748" (19.00mm)
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848443-1785942
Ultra Librarian 3D Model Ultra Librarian 1785942 CAD Model

Description

The COMBICON ICV series from Phoenix Contact is designed for reliable and secure connections in electronic applications.

  • Series: COMBICON ICV
  • Type: header with female sockets
  • Positions per Level: 2
  • Pitch: 0.200" (5.08mm)
  • Orientation: vertical
  • Termination Style: solder
  • Current Rating (IEC): 12A
  • Current Rating (UL): 10A
  • Voltage Rating (IEC): 630V
  • Voltage Rating (UL): 300V
  • Housing Material: polyamide (PA) and nylon
  • Flammability Rating: UL94 V-0
  • Packaging: bulk
  • Pieces per Package: 50
  • Features: retention latches
