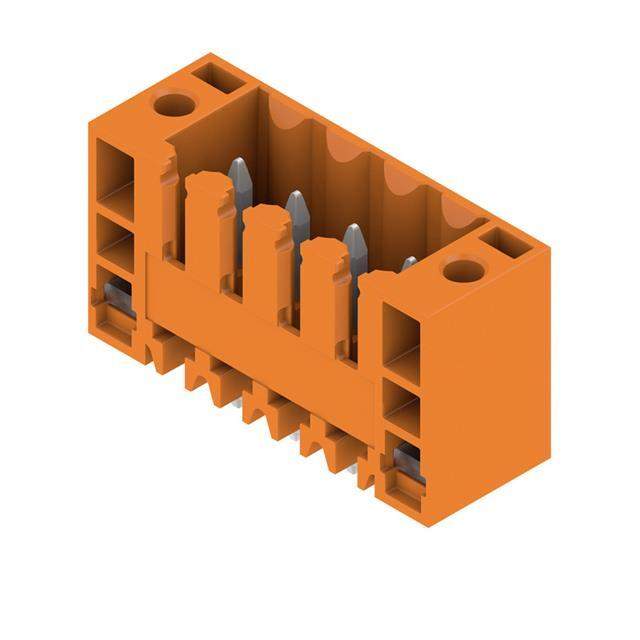

Same model may have multiple batches, images only for reference.

1607520000

Name: 1607520000
Brand: Weidmuller
SKU: 854067
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1607520000
Manufacturer	Weidmuller
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 4POS VERT 3.5MM
Datasheet	1607520000 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Weidmuller
Series	Omnimate SL
Package	Bulk
Product Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	17A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Color	Orange
Temperature Range - Operating	-50°C ~ 100°C
Contact Mating Finish	Tin
Features	Mating and Mounting Flange
Material Flammability Rating	UL94 V-0
Ingress Protection	IP10
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.126" (3.20mm)
Insulation Height	0.437" (11.10mm)
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	854067-1607520000
Ultra Librarian 3D Model	Ultra Librarian 1607520000 CAD Model

Alternative Products

Description

The 854067-1607520000 is a header terminal block from the Omnimate SL series.

Series: Omnimate SL
Design: Shrouded Male Pin
Positions per Level: 4
Pitch: 3.50mm
Current Rating (IEC): 17A
Voltage Rating (IEC): 320V
Contact Material: Copper Alloy
Contact Finish: Tin
Housing Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Mounting Type: Through-Hole
Temperature Range: -50°C to 100°C
Manufacturer: Weidmuller
Status: Active
