Same model may have multiple batches, images only for reference.

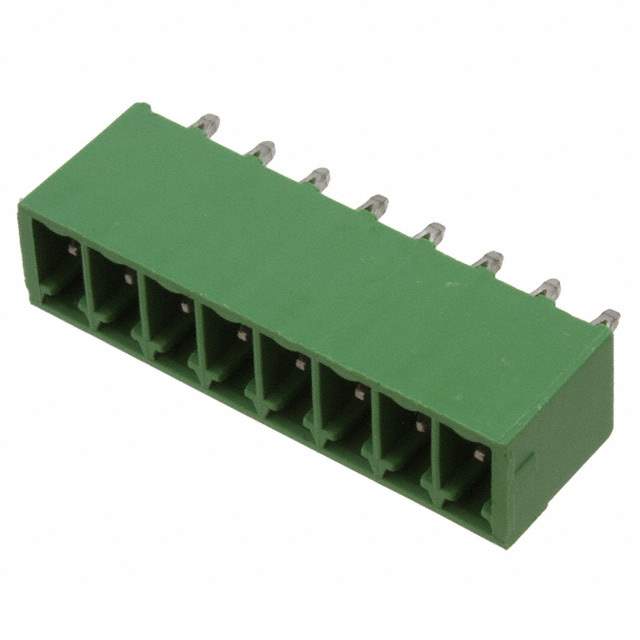

1860702 Real Image
Same model may have multiple batches, images only for reference.

1860702

Part No 1860702
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 8POS VERT 3.81MM / 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON EMCV
Package Bulk
Product Status Obsolete
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Positions Per Level 8
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation Vertical
Termination Style Press-Fit
Mounting Type Through Hole
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.150" (3.81mm)
Insulation Height 0.362" (9.20mm)
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848314-1860702
Ultra Librarian 3D Model Ultra Librarian 1860702 CAD Model

Description

The COMBICON EMCV series header with male pins is a versatile electronic component designed for connectors and interconnects.

  • Positions per Level: 8
  • Pitch: 0.150" (3.81mm)
  • Orientation: Vertical
  • Current Rating: 8A
  • Voltage Rating: 250V
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Contact Mating Finish: Tin
  • Color: Green
  • Package: Bulk
  • Package Quantity: 50 pcs
