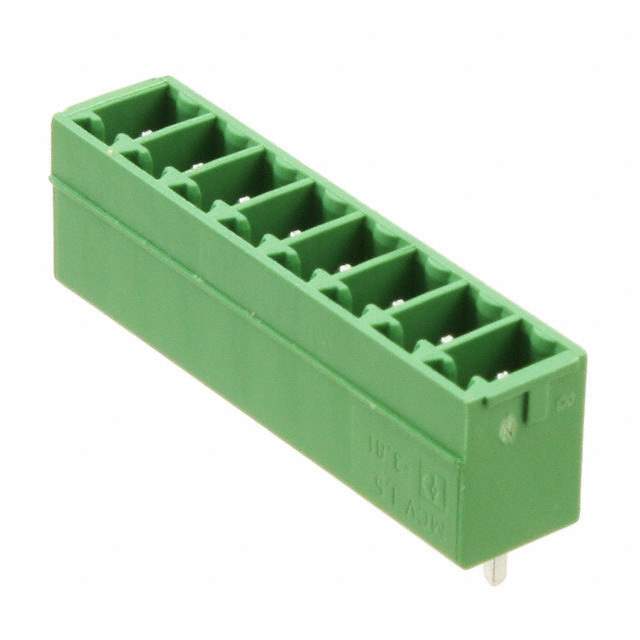

Same model may have multiple batches, images only for reference.

1803484

Name: 1803484
Brand: Phoenix Contact
SKU: 905570
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1803484
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 8POS VERT 3.81MM / 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Phoenix Contact
Series	COMBICON MCV
Package	Bulk
Product Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	8A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.134" (3.40mm)
Insulation Height	0.362" (9.20mm)
Standard Package	100 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	905570-1803484
Ultra Librarian 3D Model	Ultra Librarian 1803484 CAD Model

Alternative Products

Description

The 905570-1803484 is a header terminal block from the COMBICON MCV series by Phoenix Contact.

Manufacturer: Phoenix Contact
Series: COMBICON MCV
Product Name: 905570-1803484
Type: Header Terminal Block
Pins: Male
Sides: Shrouded (4 side)
Positions per Level: 8
Levels: 8
Pitch: 0.150" (3.81mm)
Orientation: Vertical
Mounting: Through-Hole
Housing Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Current Rating (IEC): 8A
Current Rating (UL): 8A
Voltage Rating (IEC): 250V
Voltage Rating (UL): 300V
