Same model may have multiple batches, images only for reference.

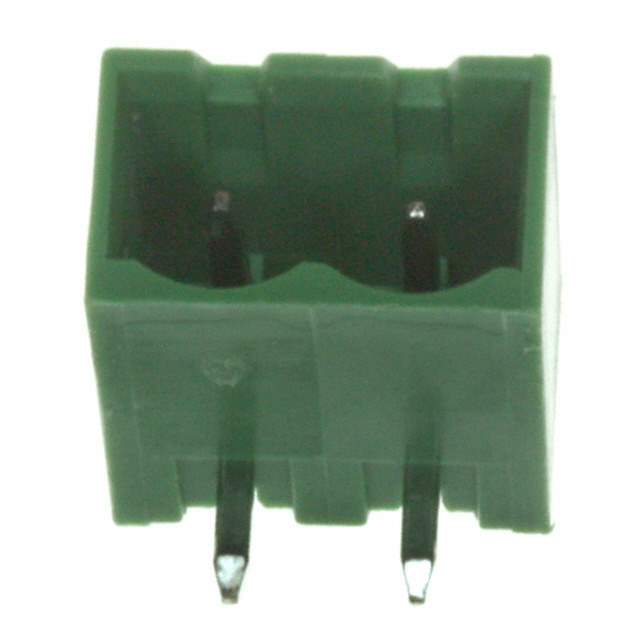

691313510002 Real Image
Same model may have multiple batches, images only for reference.

691313510002

Part No 691313510002
Manufacturer Wurth Electronics Inc
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS 90DEG 5.08MM
Datasheet
691313510002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Wurth Electronics Inc
Series WR-TBL Series 313
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - UL 20 A
Voltage - UL 300 V
Color Green
Temperature Range - Operating -40°C ~ 105°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Brass
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.335" (8.51mm)
Standard Package 600 pcs
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856975-691313510002
Ultra Librarian 3D Model Ultra Librarian 691313510002 CAD Model

Description

The WR-TBL series 313 is a range of terminal block headers designed for use in electrical and electronic systems.

  • Series: WR-TBL 313
  • Part Number: 856975-691313510002
  • Positions: 2
  • Pitch: 0.200" (5.08mm)
  • Pin Type: Male Pins
  • Shroud: Shrouded - 4 Sides
  • Contact Material: Brass
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Current Rating: 20A
  • Voltage Rating: 300V
  • Mounting Type: Through Hole
  • Package: Bulk
  • Operating Temperature: -40°C to 105°C
