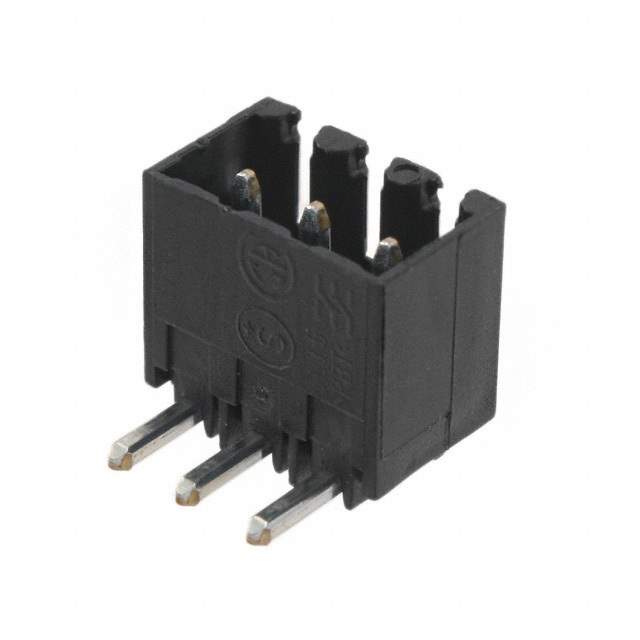

1683230000

Get a Quote

Part No	1683230000
Manufacturer	Weidmuller
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 3POS 90DEG 3.5MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Weidmüller
Series	Omnimate SL
Package	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	17A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Color	Black
Temperature Range - Operating	-50°C ~ 100°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Ingress Protection	IP10
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.126" (3.20mm)
Insulation Height	0.298" (7.57mm)
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1344474-1683230000
Ultra Librarian 3D Model	Ultra Librarian 1683230000 CAD Model

Alternative Products

Description

The Omnimate SL is a terminal block header that is equipped with male pins and is shrouded on four sides.

Positions: 3
Positions Per Level: 3
Number of Levels: 1
Pitch: 0.138" (3.50mm)
Header Orientation: 90° Right Angle
Termination Style: Solder
Current Rating IEC: 17A
Voltage Rating IEC: 320 V
Current Rating UL: 10A
Voltage Rating UL: 300V
Package: Bulk
Contact Material: Copper Alloy
Mounting Type: Through Hole
Insulation Height: 0.298" (7.57mm)
Operating Temperature: -50°C ~ 100°C
