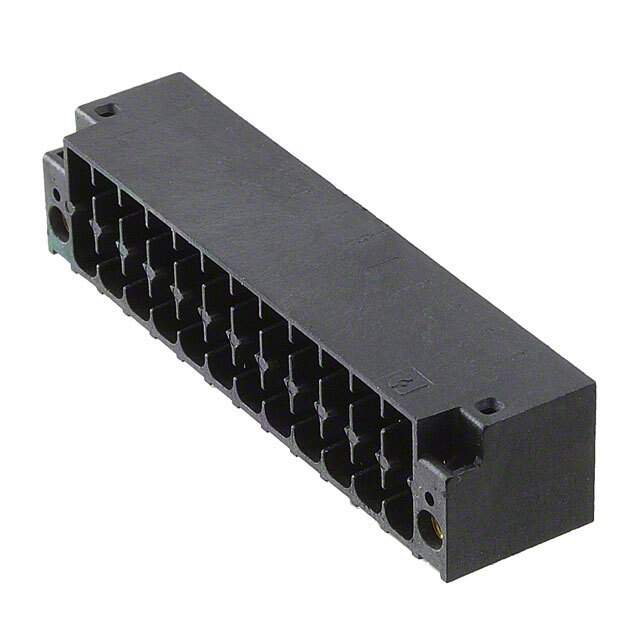

The Phoenix Contact 1352086-1787111 is a shrouded male pin header connector that comes with a bulk packaging.

• Series: COMBICON DMC
• Position Configuration: 24-Position (12 Positions per Level)
• Pitch: 0.138" (3.50mm)
• Header Orientation: 90-Degree, Right Angle
• Termination Style: Solder
• Current Rating: 8A
• Voltage Rating (IEC): 250V
• Voltage Rating (UL): 150V
• Color: Black
• Contact Mating Finish: Tin
• Housing Material: Liquid Crystal Polymer (LCP)
• Material Flammability Rating: UL94 V-0
• Standard Package: 50 Units
• Insulation Height: 0.425" (10.80mm)
• Contact Tail Length: 0.079" (2.00mm)
• Mounting Orientation: Through Hole
• RoHS Compliant: Yes
