Same model may have multiple batches, images only for reference.

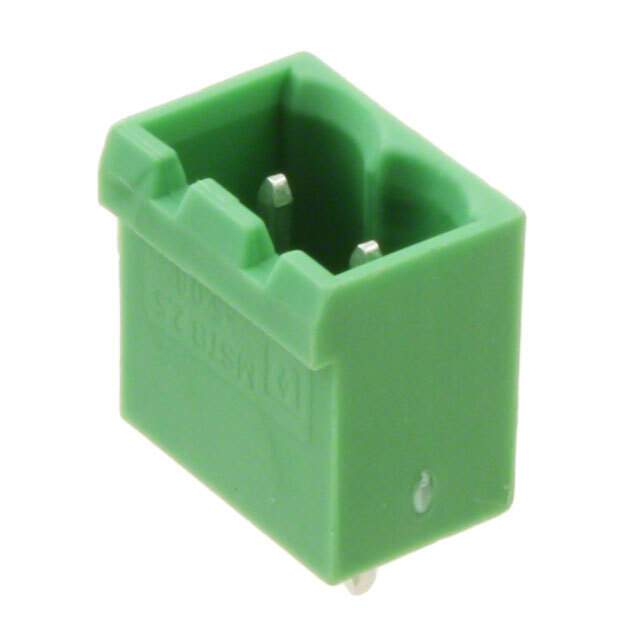

1755736 Real Image
Same model may have multiple batches, images only for reference.

1755736

Part No 1755736
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS VERT 5.08MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON MSTBVA
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 12 A
Voltage - UL 300 V
Color Green
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Housing Material Polyamide (PA), Nylon
Contact Tail Length 0.154" (3.90mm)
Insulation Height 0.472" (12.00mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849484-1755736
Ultra Librarian 3D Model Ultra Librarian 1755736 CAD Model

Description

The COMBICON MSTBVA Header Terminal Block is a high-quality component designed for electrical connections in various applications manufactured by Phoenix Contact.

  • Design: Shrouded Header
  • Pin Gender: Male
  • Positions per Level: 2
  • Levels: Single Level
  • Pitch: 0.200" (5.08mm)
  • Termination Style: Solder
  • Current Rating: 12A
  • Voltage Rating (IEC): 630V
  • Voltage Rating (UL): 300V
  • Color: Green
  • Contact Mating Finish: Tin
  • Insulation Material: Polyamide (PA) and Nylon
  • Standard Package: 250 pieces
  • Product Status: Active
