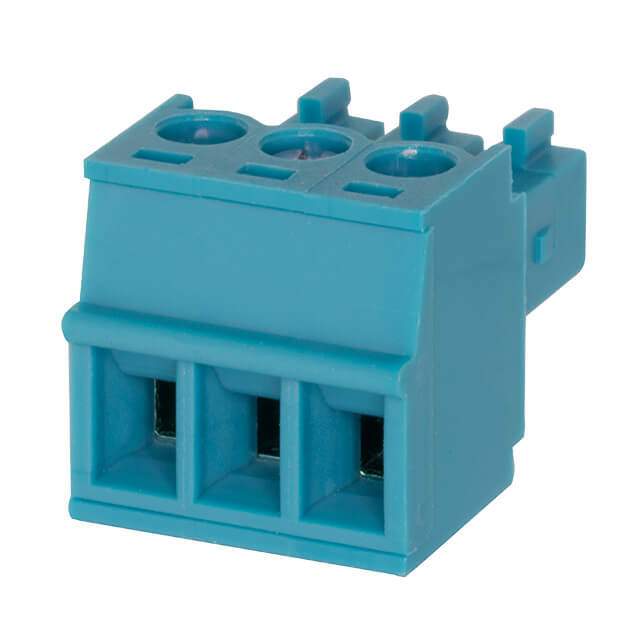

Same model may have multiple batches, images only for reference.

TBP03P3-350-08BE

Name: TBP03P3-350-08BE
Brand: CUI Inc.
SKU: 1351773
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TBP03P3-350-08BE
Manufacturer	CUI Inc.
Catalog	Headers, Plugs and Sockets
Description	2~24 POLES, PLUGGABLE, VERTICAL, / 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet	TBP03P3-350-08BE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	CUI Devices
Series	TBP03P3-350
Package	Box
Type	Plug, Female Sockets
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.138" (3.50mm)
Plug Wire Entry	180°
Termination Style	Screw
Mounting Type	Free Hanging (In-Line)
Current - IEC	7A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	16-28 AWG
Wire Gauge or Range - mm2	0.5-1.5mm2
Color	Blue
Temperature Range - Operating	-40°C ~ 105°C
Contact Mating Finish	Nickel
Material Flammability Rating	UL94 V-0
Screw Size	M2
Torque - Screw	0.2 Nm (1.7 Lb-In)
Wire Strip Length	6-7mm
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66) , Nylon 6/6
Insulation Height	0.441" (11.20mm)
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1351773-TBP03P3-350-08BE
Ultra Librarian 3D Model	Ultra Librarian TBP03P3-350-08BE CAD Model

Alternative Products

Description

The TBP03P3-350-08BE is a plug, female sockets terminal block header manufactured by CUI Devices.

Positions: 8
Positions Per Level: 8
Number of Levels: 1
Pitch: 0.138 inches (3.50mm)
Header Orientation: Not Applicable
Plug Wire Entry: 180 degrees
Termination Style: Screw
Contact Mating Finish: Nickel
Housing Material: Polyamide (PA66) and Nylon 6/6
Screw Size: M2
Mounting Type: Free Hanging (In-Line)
Operating Temperature: -40 degrees Celsius to 105 degrees Celsius
