Same model may have multiple batches, images only for reference.

TJ0611530000G

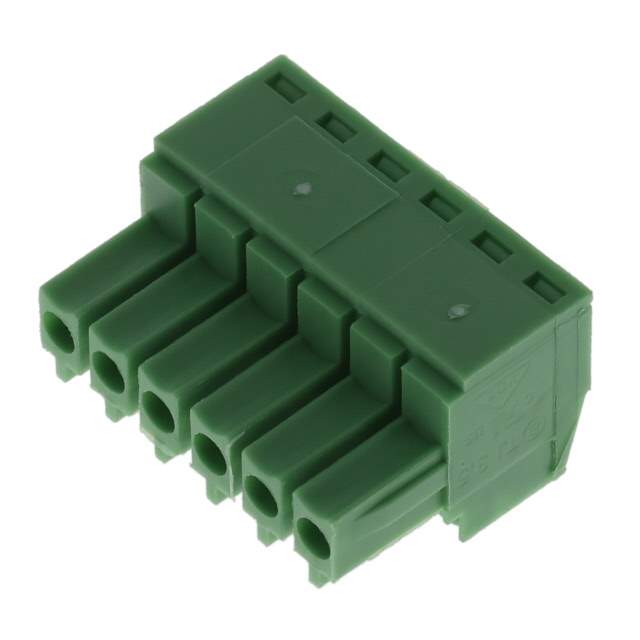

Name: TJ0611530000G
Brand: Amphenol Anytek
SKU: 1349338
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TJ0611530000G
Manufacturer	Amphenol Anytek
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 6POS STR 3.5MM / 6 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Datasheet	TJ0611530000G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Amphenol Anytek
Series	01-350
Package	Bulk
Type	Plug, Female Sockets
Number of Positions	6
Positions Per Level	6
Number of Levels	1
Pitch	0.138" (3.50mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	16-26 AWG
Wire Gauge or Range - mm2	0.5-1.5mm2
Color	Green
Temperature Range - Operating	-40°C ~ 115°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Screw Size	M2
Torque - Screw	0.23 Nm (2.0 Lb-In)
Wire Strip Length	6-7mm
Contact Material	Copper Alloy
Housing Material	Thermoplastic Resin
Insulation Height	0.437" (11.10mm)
Base Product Number	TJ06
Standard Package	2,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1349338-TJ0611530000G
Ultra Librarian 3D Model	Ultra Librarian TJ0611530000G CAD Model

Alternative Products

Description

The Amphenol Anytek 01-350 series plug female sockets are a part of the terminal blocks headers, plugs, and sockets category.

Pitch: 3.50mm
Termination Style: Screw-rising cage clamp
Current Rating: 10A
Voltage Rating: 300V
Contact Material: Copper alloy
Contact Mating Finish: Tin
Insulation Height: 11.10mm
Wire Strip Length: 6-7mm
Material: Thermoplastic resin
Flammability Rating: UL94 V-0
Torque Screw: 0.23 Nm (2.0 Lb-In)
Screw Size: M2
Mounting: Free hanging (in-line)
Temperature Range: -40°C to 115°C
Color: Green
Package: Bulk
Quantity: 2,000
