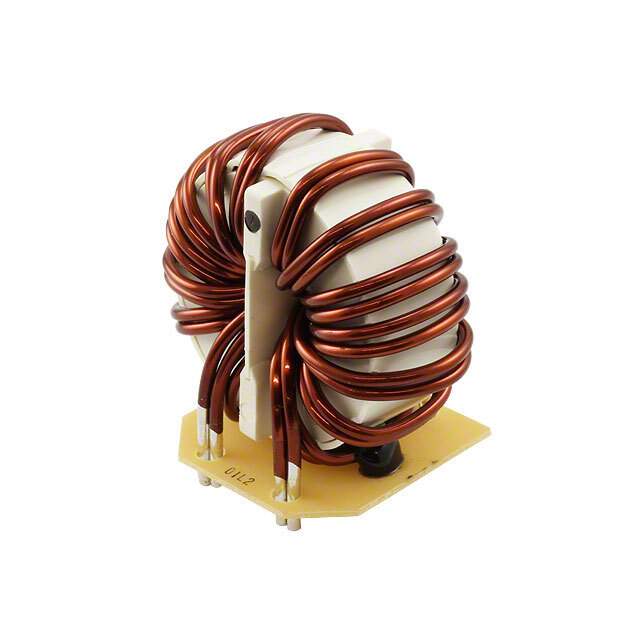

SCR-090-1R2A015J Real Image
Same model may have multiple batches, images only for reference.

SCR-090-1R2A015J

Part No SCR-090-1R2A015J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 10 kHz
Current Rating (Max) 9A
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 0.906" W (29.00mm x 23.00mm)
Height (Max) 1.142" (29.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR-090
Other Names UAL91R2A015J00,399-20198
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276901-SCR-090-1R2A015J
Ultra Librarian 3D Model Ultra Librarian SCR-090-1R2A015J CAD Model

Description

The Kemet SCR-090-1R2A015J is a common mode choke that is suitable for power line filter applications.

  • Manufacturer: Kemet
  • Product Name: SCR-090-1R2A015J
  • Voltage Rating: 250V AC and DC
  • Current Rating: 9A
  • Height: 1.142" (29.00mm)
  • Dimension: 1.142" L x 0.906" W (29.00mm x 23.00mm)
  • Inductance: 1.5 mH @ 10 kHz
  • Mounting: Through hole
  • Package/Case: Horizontal, 4 PC pin
  • Temperature Range: -25°C to 120°C
