Same model may have multiple batches, images only for reference.

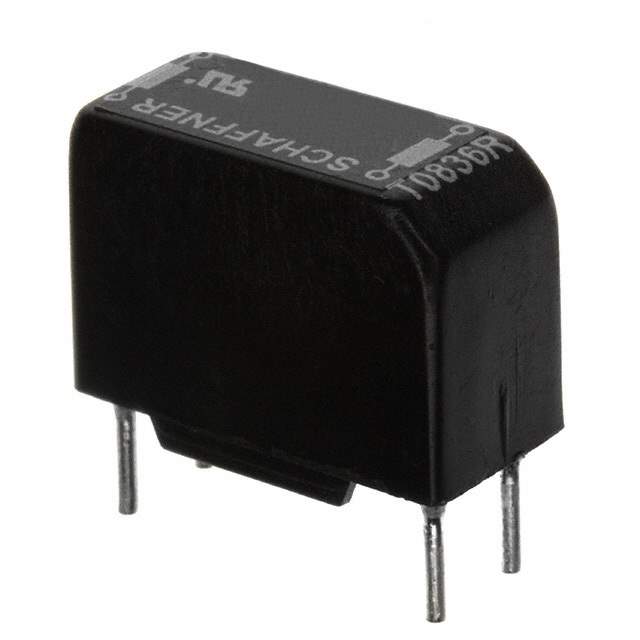

RN202-1.5-02-1M6 Real Image
Same model may have multiple batches, images only for reference.

RN202-1.5-02-1M6

Part No RN202-1.5-02-1M6
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 1.6MH 1.5A 2LN TH / 1.6 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 94mOhm (Typ)
Datasheet
RN202-1.5-02-1M6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.6 mH @ 10 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 94mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max) 0.543" (13.80mm)
Package / Case Vertical, 4 PC Pin
Base Product Number RN202
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 817-2155,816539
Standard Package 500
Win Source Part Number 1231239-RN202-1.5-02-1M6
Ultra Librarian 3D Model Ultra Librarian RN202-1.5-02-1M6 CAD Model

Description

The Schaffner EMC Inc. RN202-1.5-02-1M6 is a common mode choke that is used in power line filters.

  • Component Type: Common Mode Choke
  • Application: Power Line Filters
  • Mounting Style: Vertical, 4 PC Pin Through-Hole
  • Voltage Rating: 300V AC
  • Current Rating: 1.5A
  • Inductance: 1.6 mH @ 10 kHz
  • DC Resistance: 94mOhm
  • Temperature Range: -40°C to 100°C
  • Approval Agencies: ENEC, UR, and VDE
