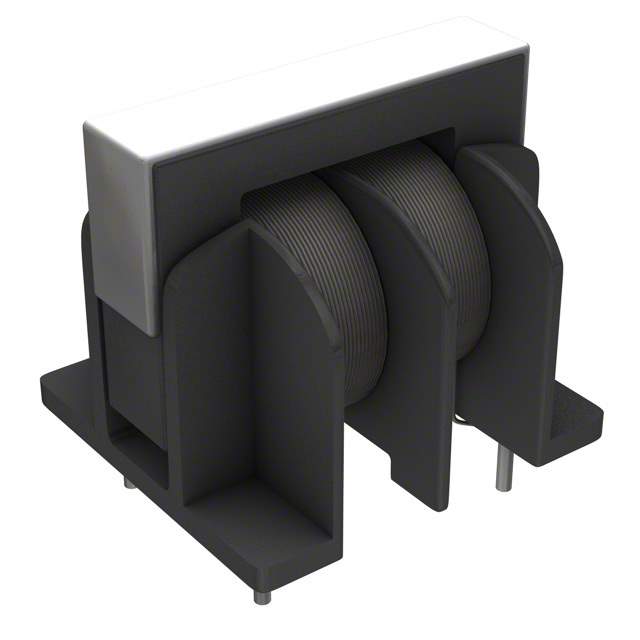

UF1815SG-500Y5R0-01 Real Image
Same model may have multiple batches, images only for reference.

UF1815SG-500Y5R0-01

Part No UF1815SG-500Y5R0-01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 50uH 1kHz 25mOhm DCR Thru-Hole Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current 5 A
DC Resistance (DCR) 25 mΩ
Depth 17 mm
Height 15.494 mm
Inductance 50 µH
Lead Free Lead Free
Length 18 mm
Max DC Current 5 A
Max Operating Temperature 120 °C
Min Operating Temperature -20 °C
Mount Through Hole
Number of Lines 2
Packaging Bulk
RoHS Compliant
Shielding Unshielded
Termination SMD/SMT
Test Frequency 1 kHz
Width 15.5 mm
Win Source Part Number 1229721-UF1815SG-500Y5R0-01
Categories Common Mode Chokes
Manufacturer TDK Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UF1815SG-500Y5R0-01 CAD Model

Description

The TDK Corporation has manufactured this common mode choke with a medium popularity in the market.

  • Packaging: Bulk
  • Termination: SMD/SMT
  • Inductance: 50 μH
  • Current Rating: 5 A
  • DC Resistance (DCR): 25 mΩ
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Operating Temperature: -20°C to 120°C
