Part No 1513660000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets

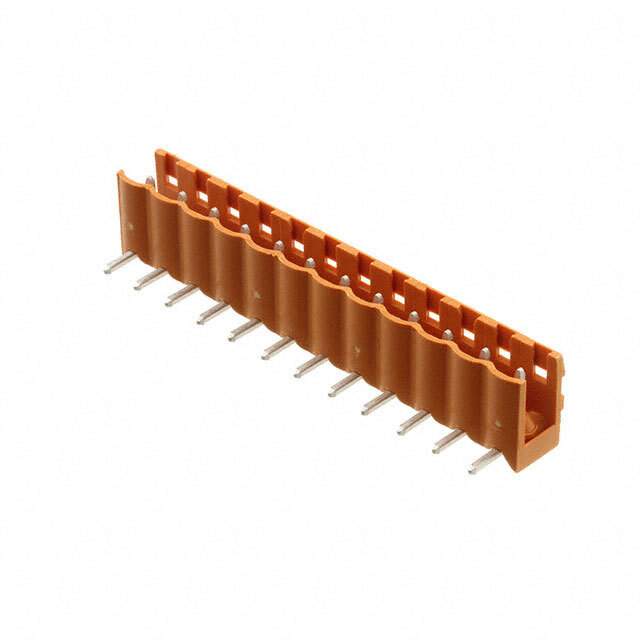

Description TERM BLOCK HDR 12POS 5.08MM / 12 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SL
Package Bulk
Product Status Obsolete
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 12
Positions Per Level 12
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 250 V
Current - UL 15 A
Voltage - UL 300 V
Color Orange
Temperature Range - Operating -20°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.177" (4.50mm)
Insulation Height 0.335" (8.51mm)
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341326-1513660000
Ultra Librarian 3D Model Ultra Librarian 1513660000 CAD Model

Description

The Omnimate SL series header male pins are a type of connector manufactured by Weidmüller.

  • Positions: 12
  • Orientation: 90-degree right-angle
  • Shrouded: two sides
  • Pitch: 0.200 inches (5.08mm)
  • Mounting: through-hole
  • Housing Material: polybutylene terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Contact Material: copper alloy
  • Contact Mating Finish: tin
  • Current Rating (IEC): 12A
  • Current Rating (UL): 15A
  • Voltage Rating (IEC): 250V
  • Voltage Rating (UL): 300V
  • Temperature Range: -20°C to 100°C
  • Package: bulk
  • Units per Package: 50
