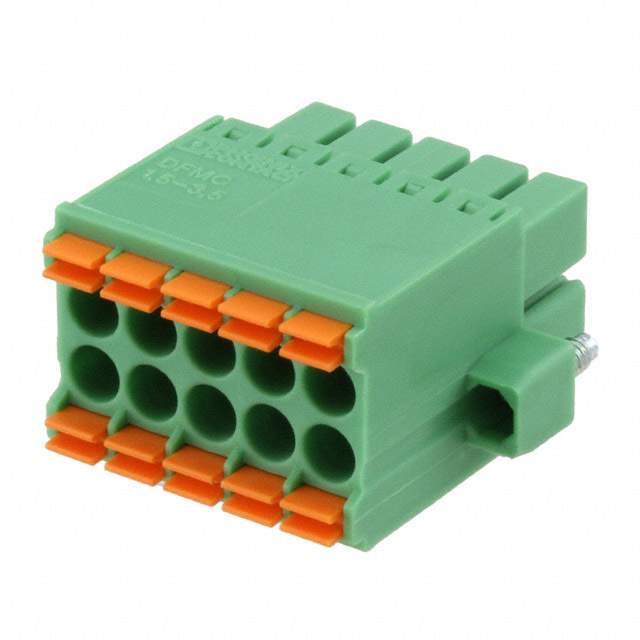

1790328 Real Image
Same model may have multiple batches, images only for reference.

1790328

Part No 1790328
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 10POS STR 3.5MM / 10 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON DFMC
Package Bulk
Type Plug, Female Sockets
Number of Positions 10
Positions Per Level 5
Number of Levels 2
Pitch 0.138" (3.50mm)
Plug Wire Entry 180°
Termination Style Screwless - Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 150 V
Wire Gauge or Range - AWG 16-24 AWG
Wire Gauge or Range - mm2 0.2-1.5mm2
Color Green
Contact Mating Finish Tin
Features Mating Flange
Material Flammability Rating UL94 V-0
Wire Strip Length 10mm
Housing Material Polyamide (PA) , Nylon
Insulation Height 0.522" (13.25mm)
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1341294-1790328
Ultra Librarian 3D Model Ultra Librarian 1790328 CAD Model

Description

The Phoenix Contact 1341294-1790328 is a plug with female sockets, suitable for connectors, interconnects, and terminal blocks.

  • Positions per Level: five
  • Levels: two
  • Pitch: 0.138 inches (3.50mm)
  • Wire Entry: 180 degrees
  • Termination Style: screwless push-in spring
  • Current Rating (IEC): 8A
  • Current Rating (UL): 8A
  • Voltage Rating (IEC): 250V
  • Voltage Rating (UL): 150V
  • Wire Gauge Range: 16-24 AWG or 0.2-1.5mm2
  • Color: green
  • Mating Flange Feature: yes
  • Contact Mating Finish: tin
  • Housing Material: polyamide (PA) or nylon
  • Material Flammability Rating: UL94 V-0
  • Mounting Type: free hanging (in-line)
  • Insulation Height: 0.522 inches (13.25mm)
  • Wire Strip Length: 10mm
