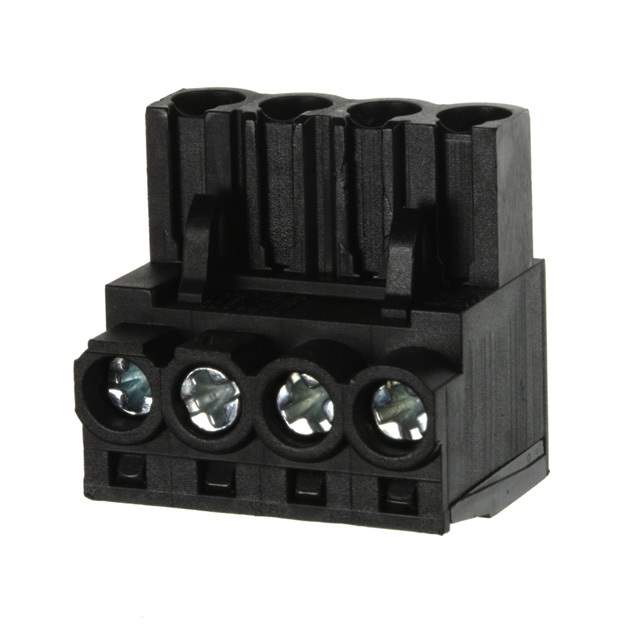

The Omnimate BL series plug female sockets are a type of terminal block header that has four positions per level and a pitch of 5.00mm.

• Number of Positions Per Level: 4
• Pitch: 5.00mm
• Current Rating (Max): 23A
• Voltage Rating (IEC): 400V
• Voltage Rating (UL): 300V
• Wire Gauge or Range - mm²: 0.2-4mm²
• Wire Gauge or Range - AWG: 12-30 AWG
• Termination Style: Screw - Clamping Yoke
• Features: Retention Latches - Non-Wire Side
• Color: Black
• Contact Material: Copper Alloy
• Contact Finish - Mating: Tin
• Housing Material: Polybutylene Terephthalate (PBT)
• Material Flammability Rating: UL94 V-0
• Operating Temperature: -50°C ~ 100°C
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: Weidmüller
