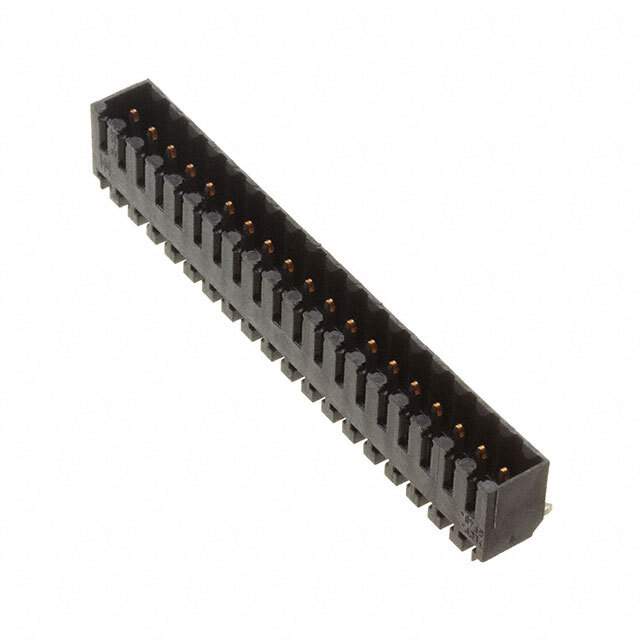

1841800000 Real Image
Same model may have multiple batches, images only for reference.

1841800000

Part No 1841800000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 19POS 90DEG 3.5MM / 19 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate SL
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 19
Positions Per Level 19
Number of Levels 1
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 15A
Voltage - IEC 320 V
Current - UL 10 A
Voltage - UL 300 V
Color Black
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Ingress Protection IP10
Contact Material Copper Alloy
Housing Material Liquid Crystal Polymer (LCP) , Glass Filled
Contact Tail Length 0.126" (3.20mm)
Insulation Height 0.293" (7.44mm)
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351405-1841800000
Ultra Librarian 3D Model Ultra Librarian 1841800000 CAD Model

Description

The Omnimate SL series header male pins shrouded electronic component is a high-quality product manufactured by Weidmüller.

  • Positions Per Level: 19
  • Number of Levels: 1
  • Header Orientation: 90 Degrees, Right Angle
  • Current - IEC: 15A
  • Voltage - IEC: 320V
  • Current - UL: 10A
  • Voltage - UL: 300V
  • Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Material Flammability Rating: UL94 V-0
  • Ingress Protection: IP10
  • Operating Temperature: -50°C ~ 100°C
  • Series: Omnimate SL
