TBP02R2W-381-12BE

Name: TBP02R2W-381-12BE
Brand: CUI Inc.
SKU: 1349308
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TBP02R2W-381-12BE
Manufacturer	CUI Inc.
Catalog	Headers, Plugs and Sockets
Description	TERMINAL BLOCK, PLUGGABLE, W SCR / 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Datasheet	TBP02R2W-381-12BE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	CUI Devices
Series	TBP02R2W-381
Package	Bag
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	12
Positions Per Level	12
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	7A
Voltage - IEC	250 V
Current - UL	8 A
Voltage - UL	300 V
Color	Blue
Temperature Range - Operating	-40°C ~ 105°C
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66) , Nylon 6/6
Contact Tail Length	0.138" (3.50mm)
Insulation Height	0.362" (9.20mm)
Base Product Number	TBP02R2
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1349308-TBP02R2W-381-12BE
Ultra Librarian 3D Model	Ultra Librarian TBP02R2W-381-12BE CAD Model

Alternative Products

Description

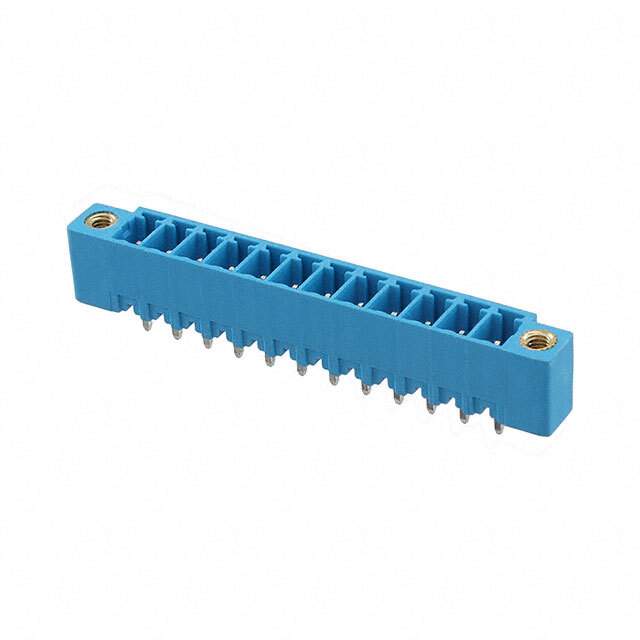

The TBP02R2W-381-12BE is a 12-position male pin header connector with shrouded sides from CUI Devices.

Number of Positions: 12
Pitch: 0.150 inches (3.81mm)
Orientation: Vertical Header
Current Rating (IEC): 7A
Current Rating (UL): 8A
Voltage Rating (IEC): 250V
Voltage Rating (UL): 300V
Contact Material: Copper Alloy
Contact Finish: Tin
Housing Material: Polyamide (PA66) and Nylon 6/6
Flammability Rating: UL94 V-0
Package: Bag
Standard Package: 100
Mounting Type: Through Hole
Insulation Height: 0.362 inches (9.20mm)
Operating Temperature: -40°C to 105°C
