Same model may have multiple batches, images only for reference.

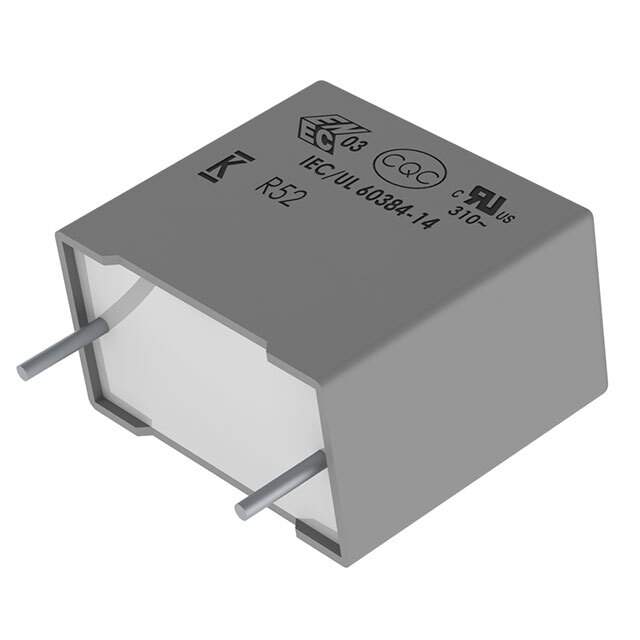

R523W515050P0K Real Image
Same model may have multiple batches, images only for reference.

R523W515050P0K

Part No R523W515050P0K
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 15UF 10% 630VDC RADIAL / 15 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial
Datasheet
R523W515050P0K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series R52
Package Tray
Capacitance 15 µF
Tolerance ±10%
Voltage Rating - AC 310V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.634" L x 0.945" W (41.50mm x 24.00mm)
Height - Seated (Max) 1.736" (44.10mm)
Termination PC Pins
Lead Spacing 1.476" (37.50mm)
Applications Automotive
Ratings AEC-Q200, X2
Base Product Number R523W
Standard Package 72
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1349925-R523W515050P0K
Ultra Librarian 3D Model Ultra Librarian R523W515050P0K CAD Model

Description

The 1349925-R523W515050P0K is a film capacitor from Kemet that has a capacitance of 15 µF and a tolerance of ±10%.

  • Capacitance: 15 µF
  • Tolerance: ±10%
  • AEC-Q200: Yes
  • X2 Rated: Yes
  • Application: Automotive
  • Voltage Rating (AC): 310V (AC)
  • Voltage Rating (DC): 630V (DC)
  • RoHS: Compliant
  • Package/Case: Radial
  • Mounting Type: Through Hole
  • Series: R52
  • Height: 1.736" (44.10mm)
