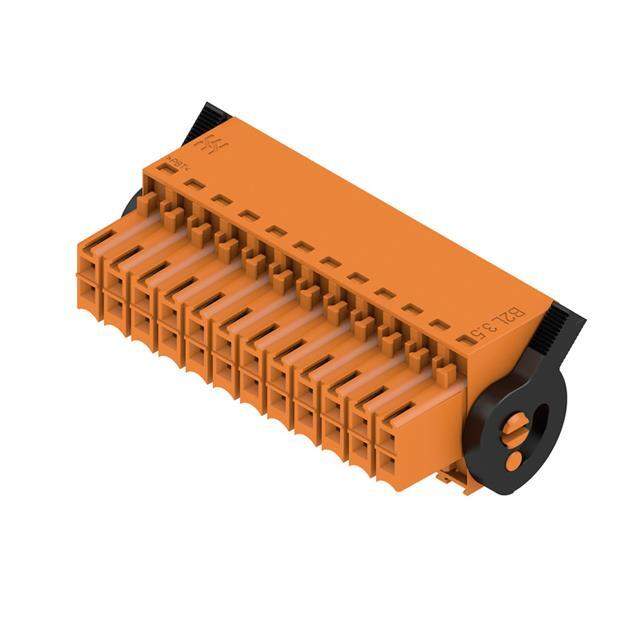

The Omnimate B2L 1342291-1748420000 is a 24 position plug and female socket terminal block header that has a pitch of 0.138 inches (3.50mm) and a header orientation of 180 degrees. Bold text is added to Omnimate and Weidmüller.

• Number of Positions: 24
• Pitch: 0.138 inches (3.50mm)
• Header Orientation: 180 Degrees
• Termination Style: Screwless Spring Cage and Tension Clamp
• Current Rating (IEC): 10.3A
• Voltage Rating (IEC): 250V
• Current Rating (UL): 10A
• Voltage Rating (UL): 150V
• Contact Material: Copper Alloy
• Contact Mating Finish: Tin
• Housing Material: Polybutylene Terephthalate (PBT)
• Material Flammability Rating: UL94 V-0
• Ingress Protection: IP20
• Temperature Range: -50°C to 100°C
