721-204/026-000 Real Image
Same model may have multiple batches, images only for reference.

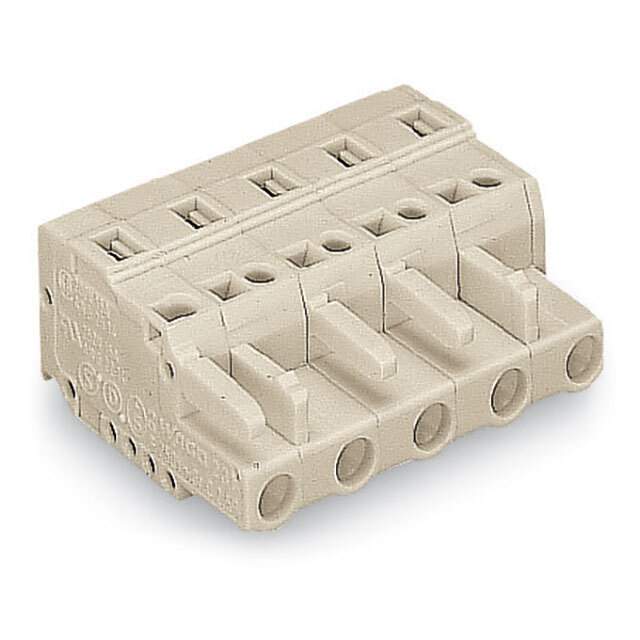

721-204/026-000

Part No 721-204/026-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description 1-CONDUCTOR FEMALE PLUG; 100% PR / 4 Position Terminal Block Plug, Female Sockets 0.295" (7.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI
Package Box
Type Plug, Female Sockets
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.295" (7.50mm)
Plug Wire Entry 180°
Termination Style Screwless - Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC 16A
Voltage - IEC 1 kV
Current - UL 15 A
Voltage - UL 600 V
Wire Gauge or Range - AWG 12-28 AWG
Wire Gauge or Range - mm2 0.08-2.5mm²
Color Gray
Temperature Range - Operating -60°C ~ 85°C
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Wire Strip Length 8-9mm
Contact Material Copper Alloy
Housing Material Polyamide (PA66) , Nylon 6/6
Insulation Height 0.563" (14.30mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1340321-721-204/026-000
Ultra Librarian 3D Model Ultra Librarian 721-204/026-000 CAD Model

Description

The WAGO Corporation Plug, Female Sockets is a high-quality electronic component used in connectors and interconnects.

  • Series: MCSMIDI
  • Positions per level: 4
  • Current: 16A (IEC), 15A (UL)
  • Voltage: 1kV (IEC), 600V (UL)
  • Wire Entry: 180 degrees
  • Termination Style: Screwless - Push-In Spring
  • Retention Latches: Non-Wire Side
  • Contact Material: Copper Alloy
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Insulation Height: 0.563" (14.30mm)
  • Wire Strip Length: 8-9mm
  • Temperature Range: -60°C ~ 85°C
