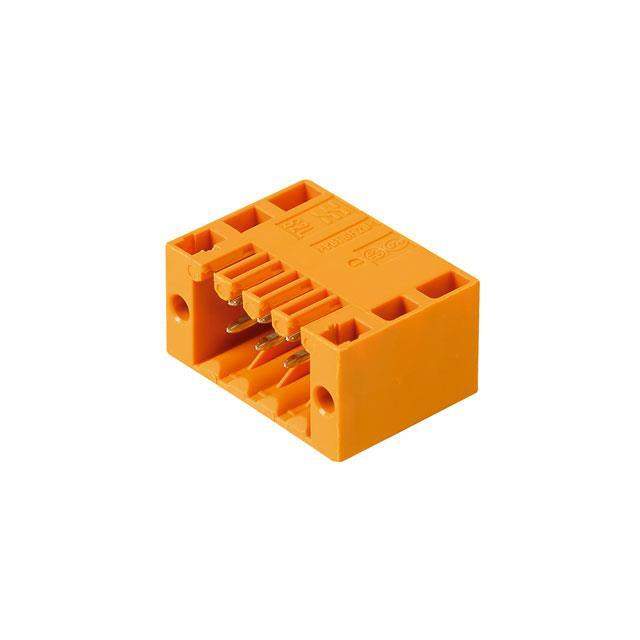

1728480000 Real Image
Same model may have multiple batches, images only for reference.

1728480000

Part No 1728480000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 8POS 90DEG 3.5MM / 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Weidmüller
Series Omnimate S2L
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 8
Positions Per Level 4
Number of Levels 2
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Type Through Hole
Current - IEC 10A
Voltage - IEC 250 V
Current - UL 10 A
Voltage - UL 150 V
Color Orange
Temperature Range - Operating -50°C ~ 100°C
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Ingress Protection IP10
Contact Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.413" (10.49mm)
Standard Package 84
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340732-1728480000
Ultra Librarian 3D Model Ultra Librarian 1728480000 CAD Model

Description

The Omnimate S2L series header, male pins, shrouded (4 side) terminal block is a product of Weidmüller.

  • Positions: 8
  • Positions Per Level: 4
  • Number of Levels: 2
  • Pitch: 0.138" (3.50mm)
  • Header Orientation: 90°, Right Angle
  • Termination Style: Solder
  • Current (IEC): 10A
  • Current (UL): 10 A
  • Voltage (IEC): 250 V
  • Voltage (UL): 150 V
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Ingress Protection: IP10
  • Packaging: Bulk
  • Standard Package: 84
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
