Same model may have multiple batches, images only for reference.

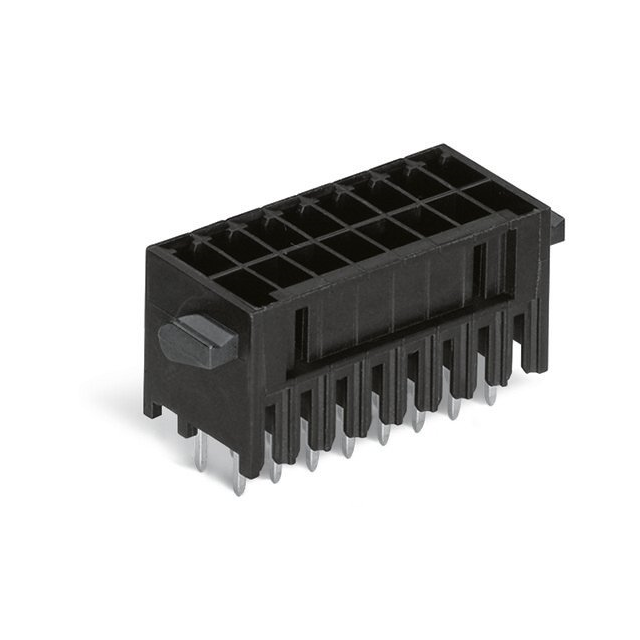

713-1405/037-000 Real Image
Same model may have multiple batches, images only for reference.

713-1405/037-000

Part No 713-1405/037-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER, 2-ROW; 0.8 X 0. / 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMINI HD
Package Box
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Positions Per Level 5
Number of Levels 2
Pitch 0.138" (3.50mm)
Header Orientation Vertical
Termination Style Solder
Mounting Type Through Hole
Current - IEC 10A
Voltage - IEC 250 V
Current - UL 10 A
Voltage - UL 150 V
Color Black
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features Lever Actuated
Material Flammability Rating UL94 V-0
Contact Material Electrolytic Copper
Housing Material Polyphthalamide (PPA) , Glass Filled
Contact Tail Length 0.150" (3.81mm)
Insulation Height 0.531" (13.50mm)
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1350285-713-1405/037-000
Ultra Librarian 3D Model Ultra Librarian 713-1405/037-000 CAD Model

Description

The MCSMINI HD series is a shrouded header with male pins and has a pitch of 0.138" (3.50mm). WAGO Corporation

  • Pitch: 0.138" (3.50mm)
  • Number of Positions: 10
  • Positions per Level: 5
  • Number of Levels: 2
  • Termination Style: Solder
  • Current Rating (IEC): 10A
  • Current Rating (UL): 10A
  • Voltage Rating (IEC): 250V
  • Voltage Rating (UL): 150V
  • Contact Material: Electrolytic Copper
  • Contact Mating Finish: Tin
  • Housing Material: Polyphthalamide (PPA), Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Actuation: Lever
  • Mounting Type: Through Hole
  • Insulation Height: 0.531" (13.50mm)
  • Contact Tail Length: 0.150" (3.81mm)
  • Operating Temperature Range: -60°C to 100°C
