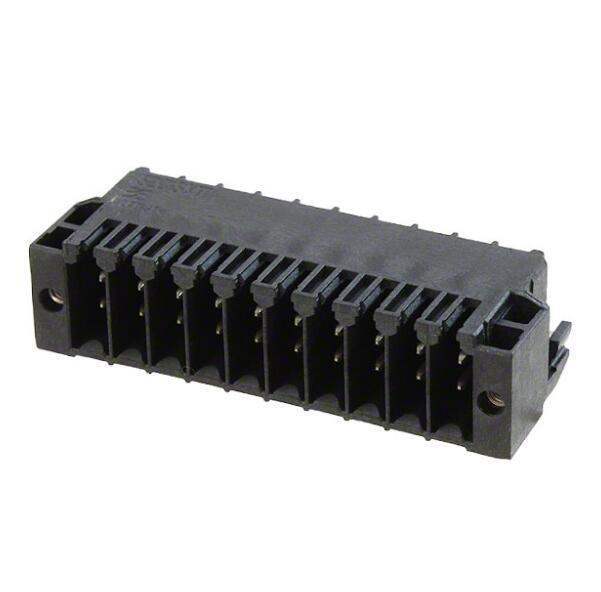

1289530000 Weidmüller
Same model may have multiple batches, images only for reference.

1289530000

Part No 1289530000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 20POS 90DEG 3.5MM
Datasheet
1289530000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Package Bulk
Series Omnimate S2C
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 20
Positions Per Level 10
Number of Levels 2
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Mounting Type Through Hole
Win Source Part Number WS1205851-1289530000
Ultra Librarian 3D Model Ultra Librarian 1289530000 CAD Model

Description

• Gold-plated contact surface on request • Tape packaged on request • See hole pattern for distance between rows • Rated voltage referenced to rated cross-section and minimum poles • P on drg. = pitch • Rated data relate to the respective component. Clearance and creepage distances to other components must be set in accordance with the relevant application standard.
