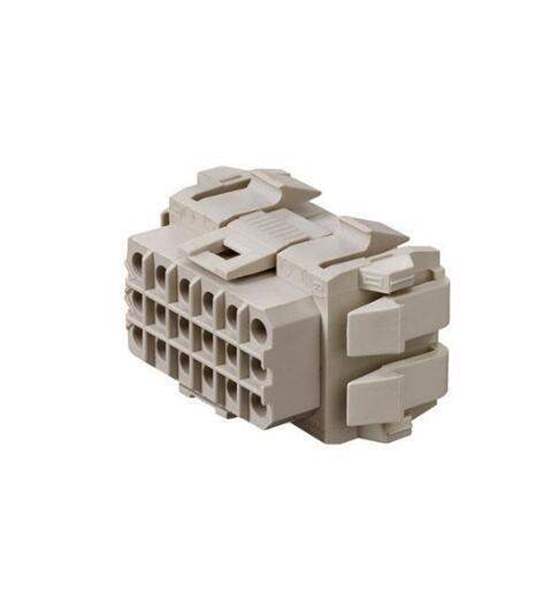

1417000000Weidmüller
Same model may have multiple batches, images only for reference.

1417000000

Part No 1417000000
Manufacturer Weidmuller
Catalog Rectangular Connectors
Description CONN RCPT HSG 18POS 5.00MM
Datasheet
1417000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Series Omnimate RSV
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 18
Pitch 0.197" (5.00mm)
Number of Rows 3
Row Spacing 0.197" (5.00mm)
Mounting Type Free Hanging (In-Line); Panel Mount
Win Source Part Number WS1205902-1417000000
Ultra Librarian 3D Model Ultra Librarian 1417000000 CAD Model

Description

Rectangular plug-in connector for use with crimp contacts. Can be used as universal coupling, but also with the PCB variations. The crimp contacts guarantee a high connection density. CS 1.6 or CB 1.6 contacts can be used here. The plug-in connectors can be coded and locked to the mating connector. Supplied in cardboard box.
