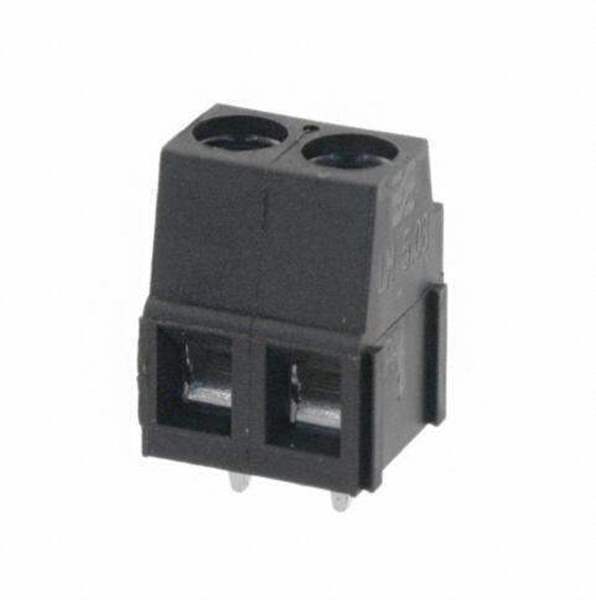

1716020000Weidmüller
Same model may have multiple batches, images only for reference.

1716020000

Part No 1716020000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLK 2P SIDE ENT 5.08MM PCB
Datasheet
1716020000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Series Omnimate LM
Package Bulk
Product Status Active
Number of Levels 1
Positions Per Level 2
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Color Black
Operating Temperature -50°C ~ 120°C
Win Source Part Number WS1206126-1716020000
Ultra Librarian 3D Model Ultra Librarian 1716020000 CAD Model

Description

PCB terminal with proven clamping yoke connection at 5.00 and 5.08 mm pitch. Conductor outlet direction 90°, 135° and 180°. Suitable for conductor cross-sections up to 2.5 mm². • 0.13 - 2.50 mm² (IEC) / 26 - 14 AWG (UL) • 630 V (IEC) / 300 V (UL) • 17.5 A (IEC) / 20 A (UL)
