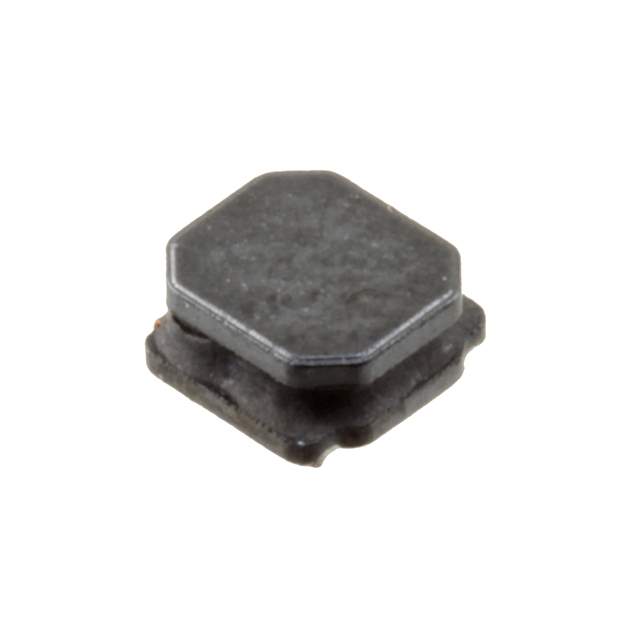

Same model may have multiple batches, images only for reference.

74404043047A

Name: 74404043047A
Brand: Wurth Electronics Inc
SKU: 960263
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74404043047A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 2.3A 46MOHM SMD / 4.7 µH Semi-Shielded Drum Core, Wirewound Inductor 2.3 A 46mOhm Nonstandard
Datasheet	74404043047A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Würth Elektronik
Series	WE-LQS
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	2.3 A
Current - Saturation (Isat)	1.43A
Shielding	Semi-Shielded
DC Resistance (DCR)	46mOhm
Frequency - Self Resonant	61MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	SMD
Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.098" (2.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	732-10756-1,732-10756-2,732-10756-6
Standard Package	3,000
Win Source Part Number	960263-74404043047A
Ultra Librarian 3D Model	Ultra Librarian 74404043047A CAD Model

Alternative Products

Description

This electronic component is an inductor, coil, choke with a fixed inductor type. The manufacturer is Würth Elektronik, and the part number is 960263-74404043047A.

Series: WE-LQS
Shielding: semi-shielded
Inductance: 4.7 µH
Packaging: tape and reel
Package Quantity: 3,000
Mounting: SMD (SMT)
Tolerance: ±20%
Core Material: ferrite
Frequency Self-Resonant: 61MHz
Package/Case: nonstandard
DC Resistance: 46mOhm
Supplier Device Package: SMD
Temperature Range: -40°C to 125°C
Dimensions: 0.157" L x 0.157" W (4.00mm x 4.00mm)
Current Rating: 2.3 A
Inductance Frequency-Test: 100 kHz
