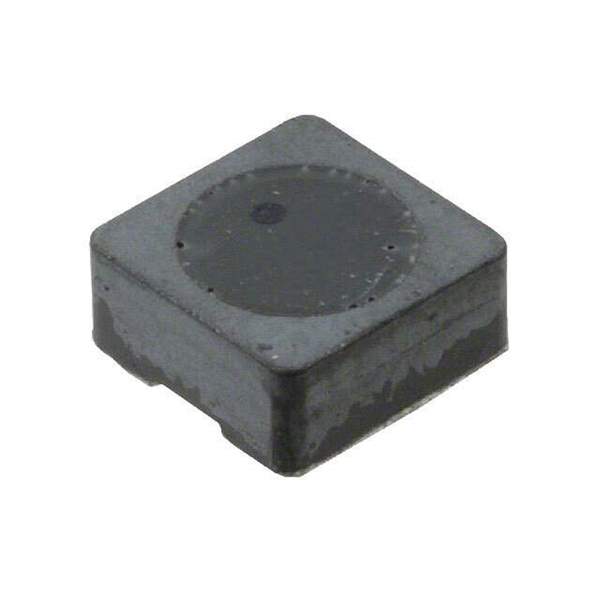

744053004 Real Image
Same model may have multiple batches, images only for reference.

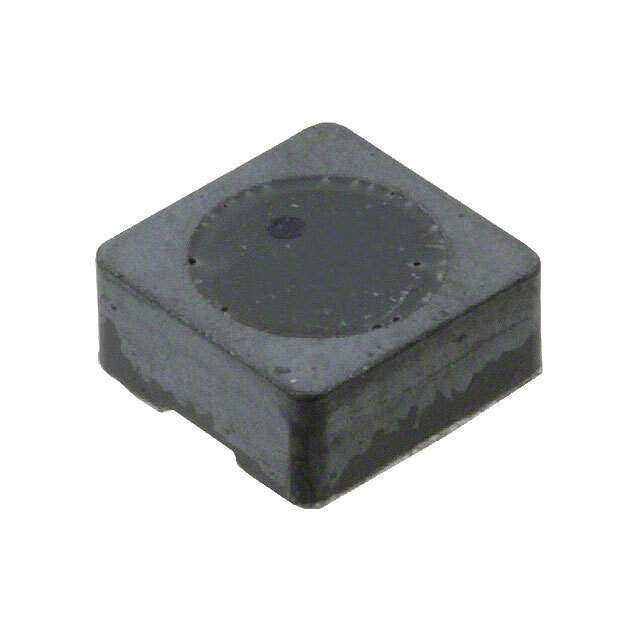

744053004

Part No 744053004
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.2UH 2.5A 35 MOHM SMD / 4.2 µH Shielded Drum Core, Wirewound Inductor 2.5 A 35mOhm Max 2323 (5858 Metric)
Datasheet
744053004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.2 µH
Tolerance ±30%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 2.2A
Shielding Shielded
DC Resistance (DCR) 35mOhm Max
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-1038-6,732-1038-2,732-1038-1
Standard Package 400
Win Source Part Number 1328957-744053004
Ultra Librarian 3D Model Ultra Librarian 744053004 CAD Model

Description

The Würth Elektronik 744053004 is a fixed inductor that comes in a reel package.

  • Manufacturer: Würth Elektronik
  • Applications: Power Supplies, DC-DC Converters, and EMI Filtering
