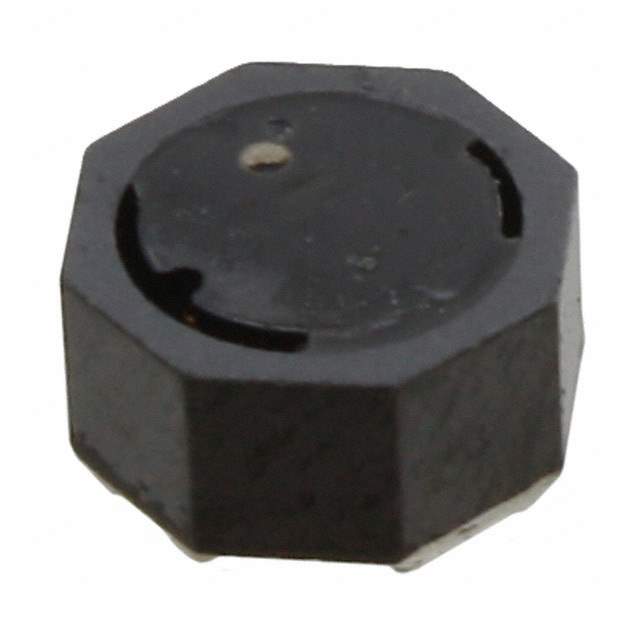

Same model may have multiple batches, images only for reference.

7440710082

Get a Quote

Part No	7440710082
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 820NH 7.3A 9 MOHM SMD / 820 nH Shielded Drum Core, Wirewound Inductor 7.3 A 9mOhm Max Nonstandard
Datasheet	7440710082 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	820 nH
Tolerance	±30%
Current Rating (Amps)	7.3 A
Current - Saturation (Isat)	8A
Shielding	Shielded
DC Resistance (DCR)	9mOhm Max
Frequency - Self Resonant	130MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.181" (4.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-3711-2,732-3711-6,732-3711-1
Standard Package	300
Win Source Part Number	1329275-7440710082
Ultra Librarian 3D Model	Ultra Librarian 7440710082 CAD Model

Alternative Products

Description

The 1329275-7440710082 is a fixed inductor manufactured by Würth Elektronik.

Category: Inductors, Coils, Chokes
Win Source Part Number: 1329275-7440710082
Shielding: Yes
Packaging: Reel - TR
Type: Drum core, wirewound
Core Material: Ferrite
Inductance: 820 nH
Tolerance: ±30%
Height: 0.181" (4.60mm) Max
Frequency: 130MHz Self-Resonant
Mounting: Surface Mount
Current Rating: 7.3 A
