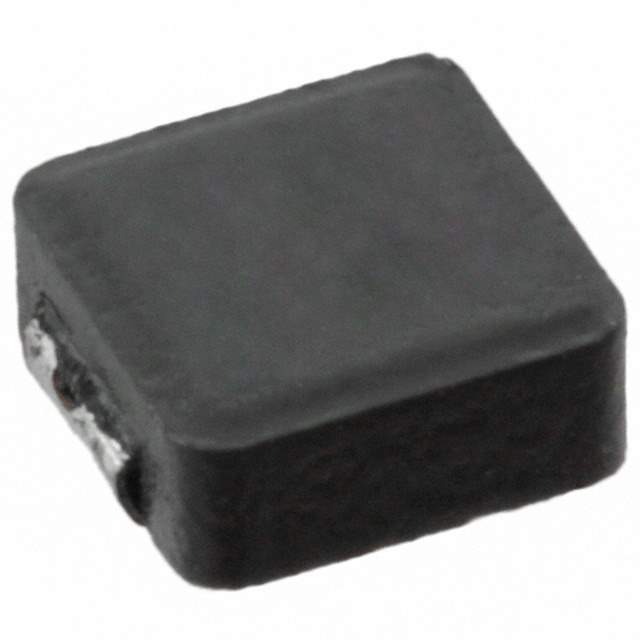

Same model may have multiple batches, images only for reference.

74437324022

Name: 74437324022
Brand: Wurth Electronics Inc
SKU: 852980
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	74437324022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 3.25A 61MOHM SMD
Datasheet	74437324022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LHMI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Iron Powder
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	3.25 A
Current - Saturation (Isat)	6.5A
Shielding	Shielded
DC Resistance (DCR)	61mOhm Max
Frequency - Self Resonant	49MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.079" (2.00mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	852980-74437324022
Ultra Librarian 3D Model	Ultra Librarian 74437324022 CAD Model

Alternative Products

Description

The WE-LHMI series is a molded inductor with a compact size of 0.175" L x 0.160" W (4.45mm x 4.06mm) and a height of 0.079" (2.00mm) from Wurth Electronics Inc.

Inductance: 2.2 µH
Inductance Tolerance: ±20%
Shielding: Shielded
DC Resistance: 61mOhm
Mounting Type: Surface Mount
Package: Tape & Reel
Package Quantity: 3,000 pcs
Operating Temperature: -40°C to 125°C
Current Rating: 3.25A
Saturation Current: 6.5A
