Same model may have multiple batches, images only for reference.

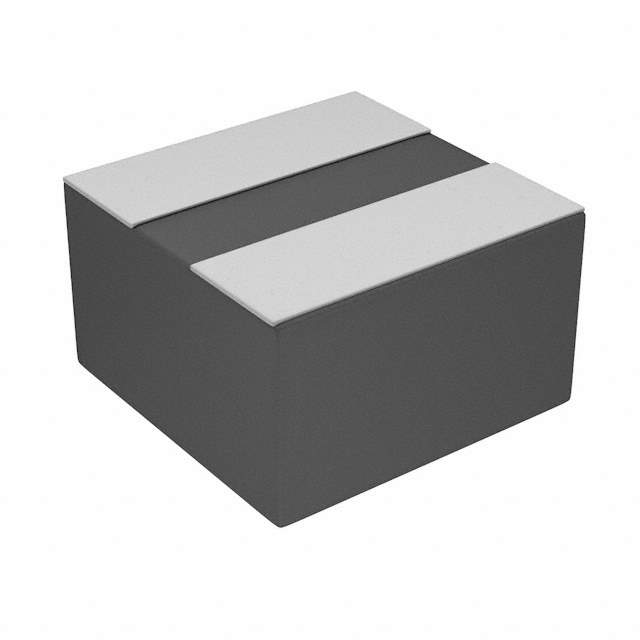

74438336010 Real Image
Same model may have multiple batches, images only for reference.

74438336010

Part No 74438336010
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 1UH 4A 32 MOHM SMD / 1 µH Shielded Molded Inductor 4 A 32mOhm Max 1212 (3030 Metric)
Datasheet
74438336010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Molded
Material - Core Metal Composite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 32mOhm Max
Frequency - Self Resonant 67MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 1212 (3030 Metric)
Supplier Device Package 3020
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-5693-2,732-5693-1,732-5693-6
Standard Package 1,000
Win Source Part Number 1327619-74438336010
Ultra Librarian 3D Model Ultra Librarian 74438336010 CAD Model

Description

The Würth Elektronik 1327619-74438336010 is a shielded molded fixed inductor with a size of 0.118" L x 0.118" W (3.00mm x 3.00mm), maximum seated height of 0.079" (2.00mm), and a DC resistance (DCR) of 32mOhm Max.

  • Inductance: 1 µH
  • Tolerance: ±20%
  • Current Rating: 4 A
  • Saturation Current: 5A
  • Frequency Self-Resonant: 67MHz
  • Inductance Frequency Test: 100 kHz
  • Material: Metal composite
  • Case/Package: 1212 (3030 Metric)
  • Operating Temperature Range: -40℃ to 125℃
  • Package: Reel of 1000 pieces
  • Mounting: Surface mount
  • ROHS3 compliant: Yes
  • REACH unaffected: Yes
