74476016C

Name: 74476016C
Brand: Wurth Electronics Inc
SKU: 857483
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	74476016C
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 68NH 500MA 380MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	68 nH
Tolerance	±5%
Current Rating (Amps)	500 mA
Shielding	Unshielded
DC Resistance (DCR)	380mOhm Max
Q @ Freq	50 @ 500MHz
Frequency - Self Resonant	1.45GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	200 MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	0805
Size / Dimension	0.090" L x 0.067" W (2.29mm x 1.70mm)
Height - Seated (Max)	0.058" (1.48mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857483-74476016C
Ultra Librarian 3D Model	Ultra Librarian 74476016C CAD Model

Alternative Products

Description

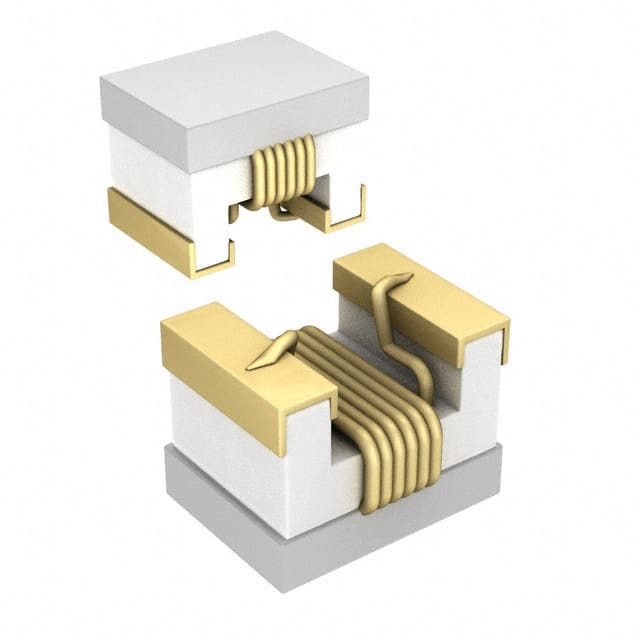

The WE-KI series from Wurth Electronics Inc is a drum core, wirewound inductor with a size of 0.090" L x 0.067" W (2.29mm x 1.70mm).

Shielding: Unshielded
Inductance: 68 nH
Tolerance: ±5%
Maximum Seated Height: 0.058" (1.48mm)
DC Resistance (DCR): 380mOhm Max
Current Rating: 500 mA
Operating Temperature: -40°C to 125°C
Core Material: Ceramic
Self-Resonant Frequency: 1.45GHz
Mounting: Surface mount
Package: Nonstandard
