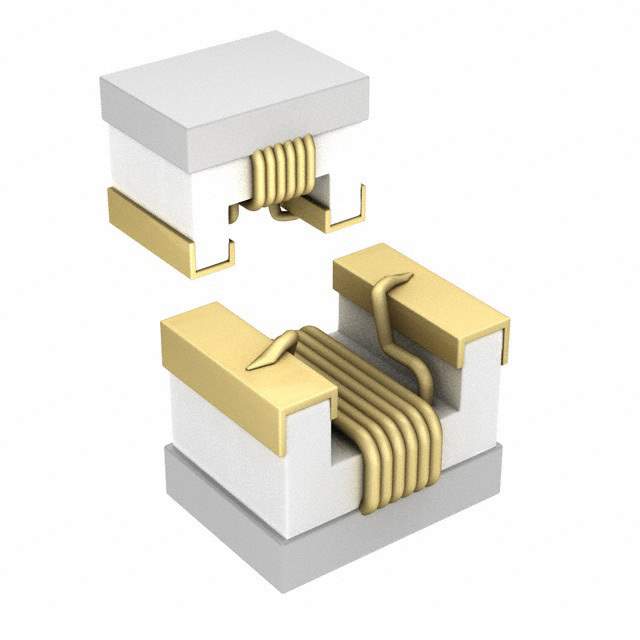

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 680 nH
Tolerance ±5%
Current Rating (Amps) 400 mA
Shielding Unshielded
DC Resistance (DCR) 1.2Ohm Max
Q @ Freq 35 @ 100MHz
Frequency - Self Resonant 188MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 25.2 MHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 0805
Size / Dimension 0.090" L x 0.067" W (2.29mm x 1.70mm)
Height - Seated (Max) 0.058" (1.48mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-3439-1,732-3439-2,732-3439-6
Standard Package 2,000
Win Source Part Number 1327747-744760268A
Ultra Librarian 3D Model Ultra Librarian 744760268A CAD Model

Description

The Würth Elektronik 744760268A is a fixed inductor with a drum core, wirewound type.

  • Shielding: unshielded
  • Size/Dimension: 0.090" L x 0.067" W (2.29mm x 1.70mm)
  • Inductance: 680 nH
  • Q @ Freq: 35 @ 100MHz
  • Mounting: Surface
  • Tolerance: ±5%
  • Manufacturer: Würth Elektronik
  • Win Source Part Number: 1327747-744760268A
  • Suitable for: use in a wide range of electronic circuits that require high inductance values
