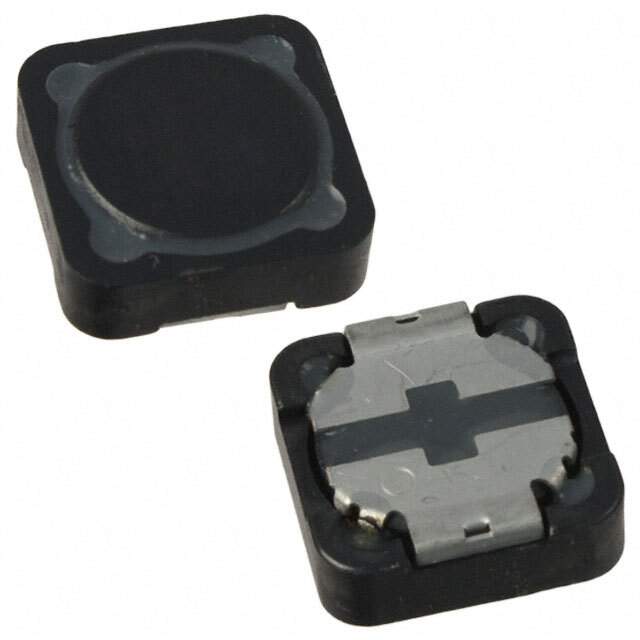

7447715001 Real Image
Same model may have multiple batches, images only for reference.

7447715001

Part No 7447715001
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 1.8UH 7.6A 9.5 MOHM / POWER-CHOKE WE-PD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 1.8μH
Tolerance ±30%
Current Rating (Amps) 7.6A
Current - Saturation 10.2A
Shielding Shielded
DC Resistance (DCR) 9.5mOhm Max
Frequency - Self Resonant 76MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811044-7447715001
Ultra Librarian 3D Model Ultra Librarian 7447715001 CAD Model

Description

The Würth Elektronik 811044-7447715001 is a shielded wirewound inductor with a ferrite core. It has an inductance of 1.8μH and a tolerance of ±30%. The inductor has a maximum DC resistance (DCR) of 9.5mOhm and a current saturation of 10.2A. The frequency of self-resonance is 76MHz, and the operating temperature range is -40°C to 125°C. The inductor is available in a non-standard manufacturer package and has a height of 0.177" (4.50mm). It is a limited supply product and comes in a pack of 500.

  • Inductance: 1.8μH
  • Tolerance: ±30%
  • Maximum DC Resistance (DCR): 9.5mOhm
  • Current Saturation: 10.2A
  • Frequency of Self-Resonance: 76MHz
  • Operating Temperature Range: -40°C to 125°C
  • Height: 0.177" (4.50mm)
