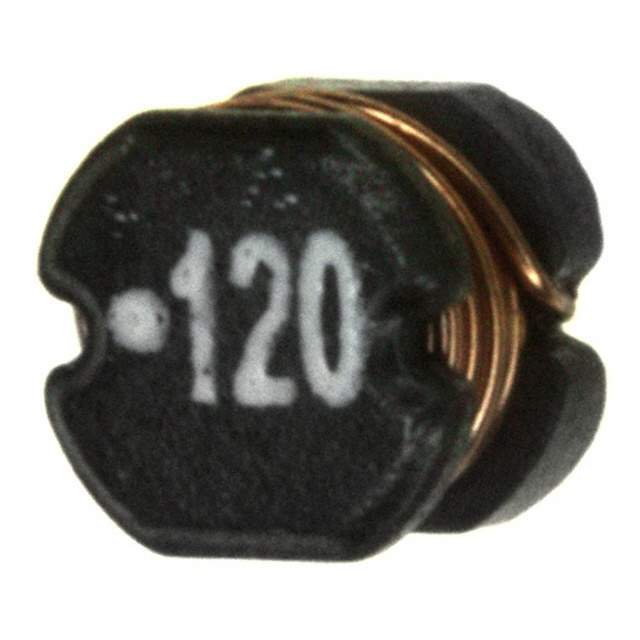

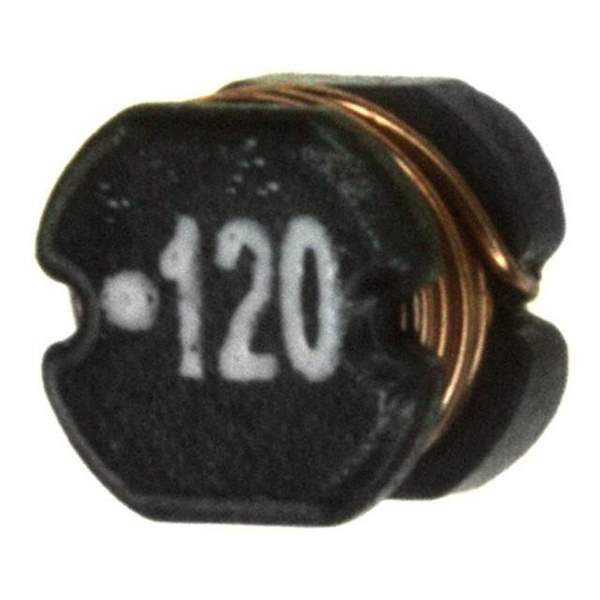

Same model may have multiple batches, images only for reference.

744773112

Name: 744773112
Brand: Wurth Electronics Inc
SKU: 810947
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744773112
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 12UH 1.28A 210 MOHM / POWER CHOKE WE-PD2
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	12μH
Tolerance	±20%
Current Rating (Amps)	1.28A
Current - Saturation	1.62A
Shielding	Unshielded
DC Resistance (DCR)	210mOhm Max
Frequency - Self Resonant	32MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Maximum)	0.138" (3.50mm)
Manufacturer Pack Quantity	1,500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	810950-744773112
Ultra Librarian 3D Model	Ultra Librarian 744773112 CAD Model

Alternative Products

Description

This wirewound inductor from Würth Elektronik comes in an SMD mounting style with no shielding.

Inductance: 12μH
Tolerance: ±20%
Core Material: Ferrite
Maximum DC Resistance (DCR): 210mOhm
Current Saturation: 1.62A
Self-Resonant Frequency: 32MHz
Operating Temperature Range: -40°C to 125°C
Dimension: 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height: 0.138" (3.50mm)
Manufacturer Package: Nonstandard
Manufacturer Pack Quantity: 1,500
Current Rating: 1.28A
Inductance Frequency Test: 10kHz
