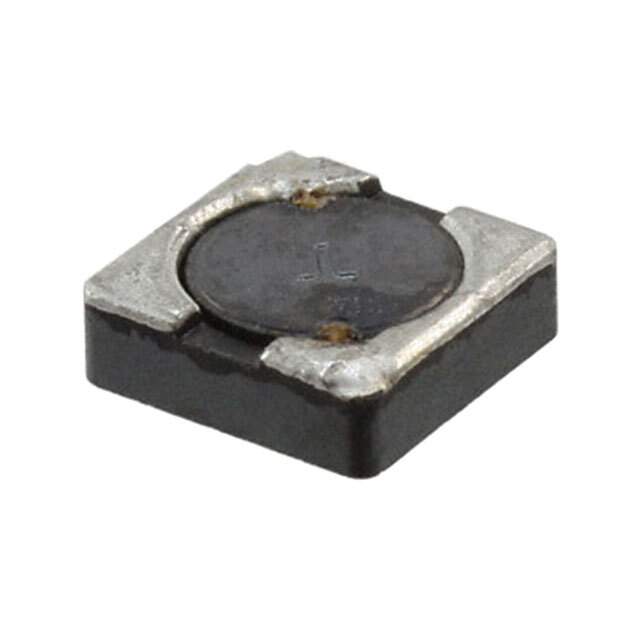

Same model may have multiple batches, images only for reference.

744062180

Name: 744062180
Brand: Wurth Electronics Inc
SKU: 857258
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744062180
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 18UH 1.28A 100MOHM SMD
Datasheet	744062180 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	18 µH
Tolerance	±30%
Current Rating (Amps)	1.28 A
Current - Saturation (Isat)	1A
Shielding	Shielded
DC Resistance (DCR)	100mOhm Max
Frequency - Self Resonant	25MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	2727 (6868 Metric)
Size / Dimension	0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max)	0.098" (2.50mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857258-744062180
Ultra Librarian 3D Model	Ultra Librarian 744062180 CAD Model

Alternative Products

Description

The WE-TPC series from Wurth Electronics Inc is a drum core, wirewound inductor with a shielding feature.

Size: 0.268" L x 0.268" W (6.80mm x 6.80mm)
Inductance: 18 µH
Maximum Seated Height: 0.098" (2.50mm)
Mounting Type: Surface Mount
Package: Tape & Reel
Tolerance: ±30%
DC Resistance (DCR): 100mOhm Max
Operating Temperature: -40°C to 125°C
Current Rating: 1.28 A
Saturation Current: 1A
