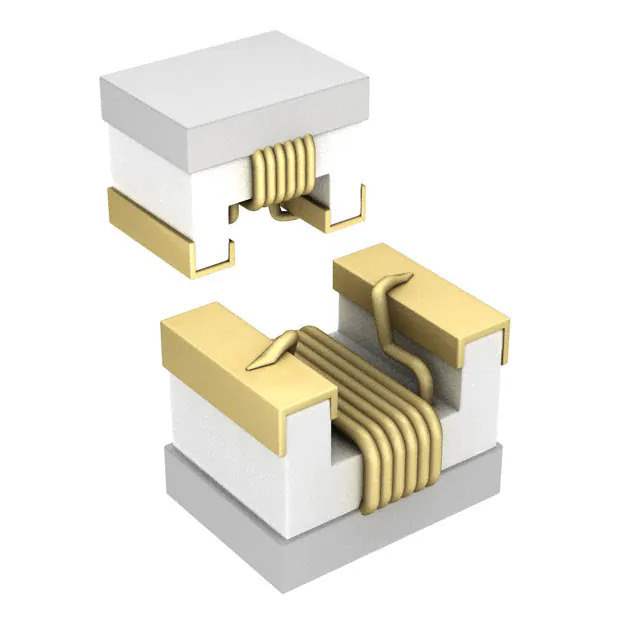

Same model may have multiple batches, images only for reference.

744760322A

Name: 744760322A
Brand: Wurth Electronics Inc
SKU: 857486
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744760322A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 110MA 3.1OHM SMD
Datasheet	744760322A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-RFI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±5%
Current Rating (Amps)	110 mA
Shielding	Unshielded
DC Resistance (DCR)	3.1Ohm Max
Q @ Freq	15 @ 7.96MHz
Frequency - Self Resonant	110MHz
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	7.96 MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	0805
Size / Dimension	0.090" L x 0.067" W (2.29mm x 1.70mm)
Height - Seated (Max)	0.058" (1.48mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857486-744760322A
Ultra Librarian 3D Model	Ultra Librarian 744760322A CAD Model

Alternative Products

Description

The WE-RFI series is a line of drum core, wirewound fixed inductors designed for electronic components. Manufactured by Wurth Electronics Inc, the WE-RFI series is currently active in the market.

Size: 0.090" L x 0.067" W (2.29mm x 1.70mm)
Height: 0.058" (1.48mm)
Mounting: Surface mount applications
Shielding: Unshielded package
Inductance: 2.2 µH
Tolerance: ±5%
DC Resistance (DCR): 3.1Ohm Max
Current Rating: 110 mA
Core Material: Ferrite
Temperature Range: -40°C to 85°C
Frequency Self-Resonant: 110MHz
