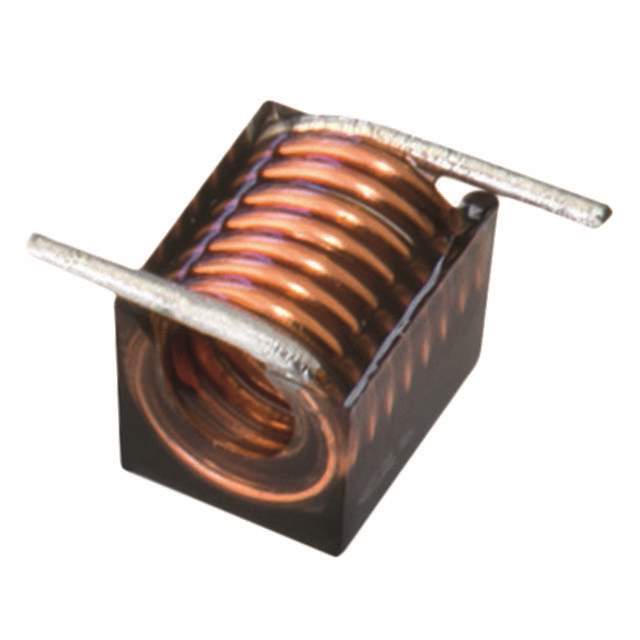

Same model may have multiple batches, images only for reference.

744912168

Get a Quote

Part No	744912168
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 68NH 2.5A 8.2 MOHM SMD / 68 nH Unshielded Wirewound Inductor 2.5 A 8.2mOhm Max Nonstandard
Datasheet	744912168 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Wirewound
Material - Core	Air
Inductance	68 nH
Tolerance	±5%
Current Rating (Amps)	2.5 A
Shielding	Unshielded
DC Resistance (DCR)	8.2mOhm Max
Q @ Freq	100 @ 150MHz
Frequency - Self Resonant	1.5GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	150 MHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	4248
Size / Dimension	0.190" L x 0.150" W (4.83mm x 3.81mm)
Height - Seated (Max)	0.165" (4.20mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-5642-6,732-5642-1,732-5642-2
Standard Package	1,000
Win Source Part Number	1327656-744912168
Ultra Librarian 3D Model	Ultra Librarian 744912168 CAD Model

Alternative Products

Description

The 1327656-744912168 from Würth Elektronik is a wirewound inductor that belongs to the fixed inductor category.

Packaging: Reel - TR
Shielding: Unshielded
Dimension: 0.190" L x 0.150" W (4.83mm x 3.81mm)
Inductance: 68 nH
Seated Height (Max): 0.165" (4.20mm)
Current Rating: 2.5 A
Operating Temperature Range: -40°C to 125°C
Core Material: Air Core
Tolerance: ±5%
Q @ Freq: 100 @ 150MHz
Frequency Self-Resonant: 1.5GHz
DC Resistance (DCR): 8.2mOhm Max
Supplier Device Package: 4248
Compliance: ROHS3
