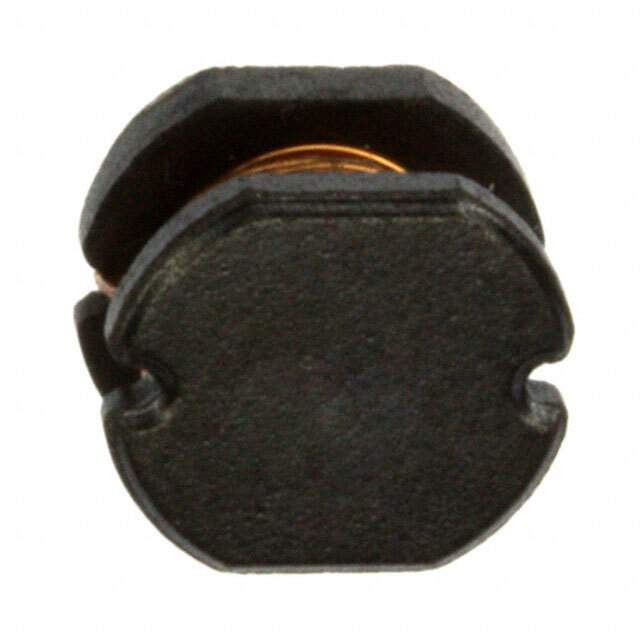

744775222 Real Image
Same model may have multiple batches, images only for reference.

744775222

Part No 744775222
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220UH 510MA 960 MOHM / POWER-CHOKE WE-PD2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Bulk
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±10%
Current Rating (Amps) 510mA
Current - Saturation 560mA
Shielding Unshielded
DC Resistance (DCR) 960mOhm Max
Frequency - Self Resonant 5.4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805192-744775222
Ultra Librarian 3D Model Ultra Librarian 744775222 CAD Model

Description

This wirewound inductor is an SMD type that is unshielded.

  • Inductance: 220μH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • DC Resistance (DCR): 960mOhm Max
  • Current Saturation: 560mA
  • Self-Resonant Frequency: 5.4MHz
  • Operating Temperature: -40°C to 125°C
  • Dimension: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Seated Height: 0.217" (5.50mm)
  • Packaging: Nonstandard
  • Manufacturer Pack Quantity: 500
  • Supply and Demand Status: Balance
