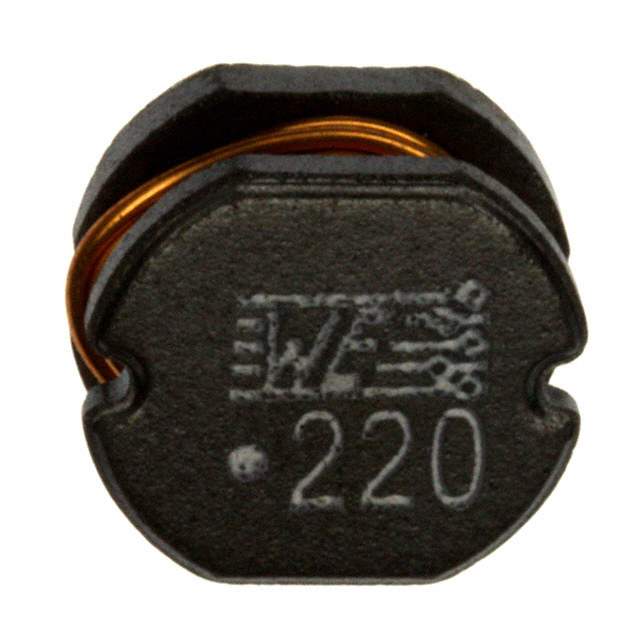

744776122 Real Image
Same model may have multiple batches, images only for reference.

744776122

Part No 744776122
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 22UH 2.04A 100 MOHM / POWER-CHOKE WE-PD2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 2.04A
Current - Saturation 2.07A
Shielding Unshielded
DC Resistance (DCR) 100mOhm Max
Frequency - Self Resonant 16MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Maximum) 0.232" (5.90mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811174-744776122
Ultra Librarian 3D Model Ultra Librarian 744776122 CAD Model

Description

The Würth Elektronik is a wirewound type inductor.

  • Inductance: 22μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Shielded: No
  • Current Saturation: 2.07A
  • Self-Resonant Frequency: 16MHz
  • Manufacturer Package: Nonstandard
  • Temperature Range: -40°C ~ 125°C
  • Current Rating: 2.04A
  • Dimension: 0.394" L x 0.354" W (10.00mm x 9.00mm)
