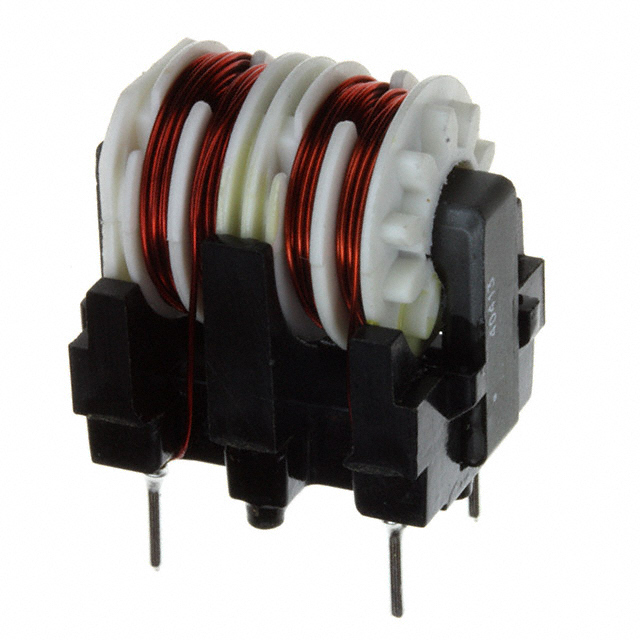

7448060620 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7448060620

Part No 7448060620
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 20MH 6A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 20 mH @ 10 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 45mOhm
Voltage Rating - AC 300V
Temperature Range - Operating -55° C ~ 125°C
Features Nanocrystalline Core
Mounting Type Through Hole
Size / Dimension 1.693" L x 1.063" W (43.00mm x 27.00mm)
Height (Max) 1.811" (46.00mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1507181-7448060620
Ultra Librarian 3D Model Ultra Librarian 7448060620 CAD Model
