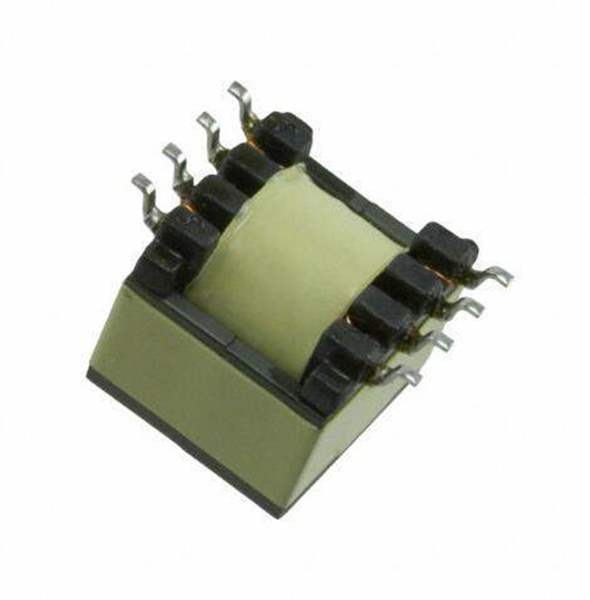

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Transformers Switching Converter, SMPS Transformers
Product Status Active
Type For DC/DC Converters
Applications Flyback Converters
Chipset Manufacturer Linear Technology
Voltage - Primary 10 ~ 40V
Voltage - Auxiliary 10V @ 20mA
Voltage - Isolation 1500Vrms
Inductance @ Frequency 7µH @ 250kHz
Frequency 250kHz
Win Source Part Number WS1210733-750311567
Ultra Librarian 3D Model Ultra Librarian 750311567 CAD Model

Description

Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
