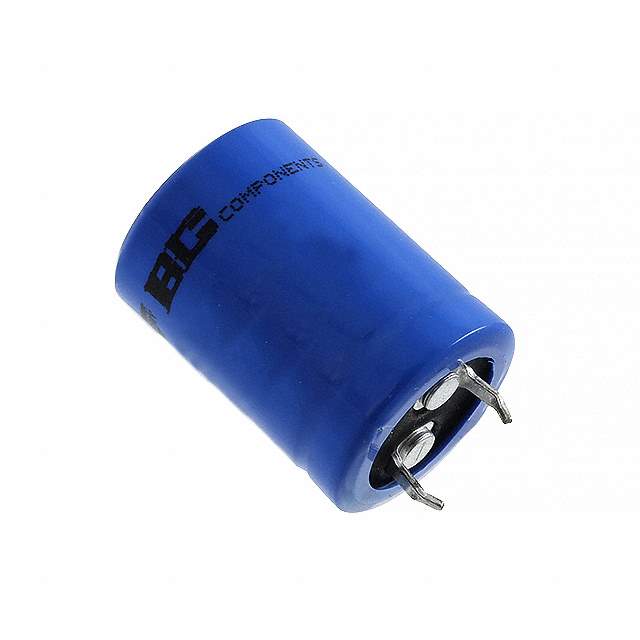

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay BC Components
Packaging Tape & Box (TB)
Capacitance 220μF
Tolerance ±20%
Voltage - Rated 450V
ESR (Equivalent Series Resistance) 590mOhm at 120Hz
Lifetime at Temp. 2000 Hrs at 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current at Low Frequency 1.19A at 120Hz
Impedance 430 mOhms
Lead Spacing 0.394" (10.00mm)
Parts Dimension 1.181" Dia (30.00mm)
Height - Seated (Maximum) 1.260" (32.00mm)
Mounting Style Through Hole
Manufacturer Package Radial, Can - Snap-In
Manufacturer Pack Quantity 100
MSL Level Not Applicable
Win Source Part Number 1211759-MAL209437221E3
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MAL209437221E3 CAD Model

Description

The MAL209437221E3 is a radial, can-snap-in capacitor manufactured by Vishay BC Components. It has a capacitance of 220μF and a voltage rating of 450V.

  • The supply and demand status for this product is: limited.
  • The capacitor has a ripple current of: 1.19A @ 120Hz
  • and an ESR of: 590mOhm @ 120Hz.
  • It is: polarized
  • and has a tolerance of: ±20%.
  • The operating temperature range is between: -25°C to 105°C,
  • and it has a lifetime of: 2000 hours @ 105°C.
  • The lead spacing is: 0.394" (10.00mm)
  • and the height seated (maximum) is: 1.260" (32.00mm).
