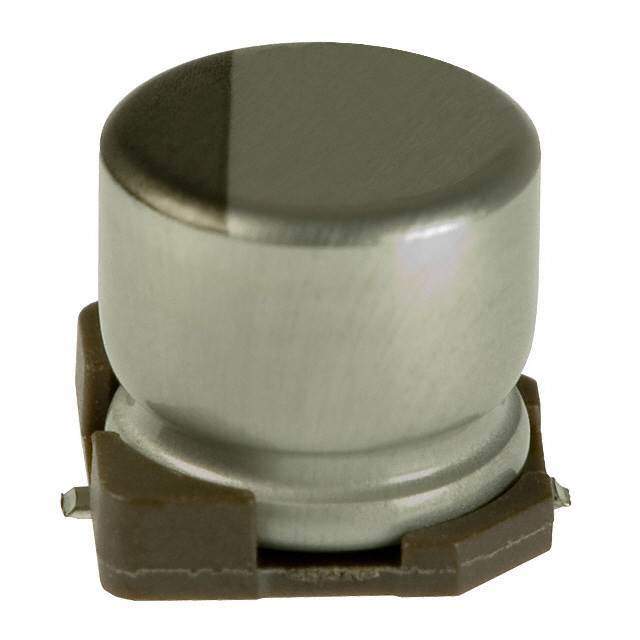

Same model may have multiple batches, images only for reference.

UUD1V270MCL1GS

Name: UUD1V270MCL1GS
Brand: Nichicon
SKU: 975909
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UUD1V270MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 27UF 20% 35V SMD / 27 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUD
Package	Tape & Reel
Capacitance	27 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	115 mA @ 120 Hz
Ripple Current @ High Frequency	230 mA @ 100 kHz
Impedance	440 mOhms
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-2285-2,493-2285-1,Q4339361,493-2285-6
Standard Package	1,000
Win Source Part Number	975909-UUD1V270MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUD1V270MCL1GS CAD Model

Alternative Products

Description

This aluminum electrolytic capacitor electronic component is manufactured by Nichicon.

Capacitance: 27μF
Voltage Rating: 35V
Tolerance: ±20%
Ripple Current @ Low Frequency: 115 mA @ 120 Hz
Ripple Current @ High Frequency: 230 mA @ 100 kHz
Height-Seated (Max): 0.228" (5.80mm)
Dimension: 0.248" Dia (6.30mm)
Package/Case: Radial, Can - SMD
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Temperature Range: -55°C to 105°C
Lifetime: 2000 Hrs @ 105°C
Category: Capacitors>Aluminum Electrolytic Capacitors
Series: UUD
Package: Tape & Reel
Standard Package: 1,000
Impedance: 440 mOhms
ESR (Equivalent Series Resistance): Not specified
AEC-Q200: Yes
Application: Automotive applications
