7687709102

Name: 7687709102
Brand: Wurth Electronics Inc
SKU: 804005
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7687709102
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors

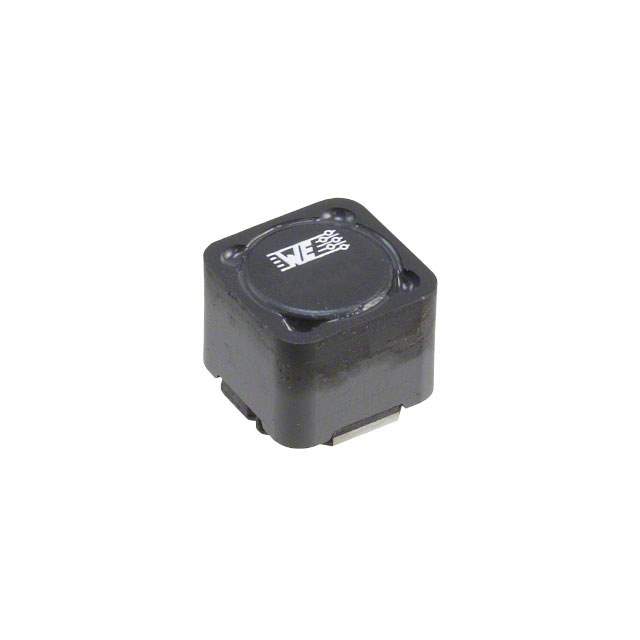

Description	FIXED IND 1MH 720MA 1.4 OHM SMD / WE-PDHV SMD Power Inductor
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Inductance	1mH
Tolerance	±20%
Current Rating (Amps)	720mA
Current - Saturation	900mA
Shielding	Shielded
DC Resistance (DCR)	1.4Ohm Max
Frequency - Self Resonant	1.2MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum)	0.413" (10.50mm)
Manufacturer Pack Quantity	250
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804005-7687709102
Ultra Librarian 3D Model	Ultra Librarian 7687709102 CAD Model

Alternative Products

Description

The Würth Elektronik 804005-7687709102 is a shielded wirewound inductor with an inductance of 1mH.

Current Saturation: 900mA
Tolerance: ±20%
DC Resistance: 1.4Ohm max
Temperature Range: -40°C to 125°C
Frequency Self-Resonant: 1.2MHz
Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height: 0.413" (10.50mm)
Packaging: Reel
Manufacturer Pack Quantity: 250
