The Xilinx XC7A15T-1FGG484I is an Artix-7 FPGA (Field-Programmable Gate Array). It is designed for low power consumption and high performance, making it suitable for a wide range of applications including industrial automation, consumer electronics, and embedded systems.

Applications

• Industrial Automation: Motor control, sensor processing, and industrial networking.
• Consumer Electronics: Image processing, audio processing, and video processing.
• Embedded Systems: Control systems, data acquisition, and signal processing.
• Medical Devices: Diagnostic imaging, patient monitoring, and medical instrumentation.
• Automotive Systems: Driver assistance systems, infotainment, and powertrain control.

Features

• FPGA Logic: Programmable logic cells for implementing custom digital circuits.
• Block RAM: On-chip memory blocks for data storage.
• DSP Slices: Dedicated DSP blocks for high-performance signal processing.
• Mixed-Mode Clock Manager (MMCM): Flexible clocking resources for system timing.
• Integrated Analog-to-Digital Converters (ADCs): For interfacing with analog sensors and signals.
• High-Speed Serial I/O: Supports various high-speed serial protocols such as PCI Express and Gigabit Ethernet.

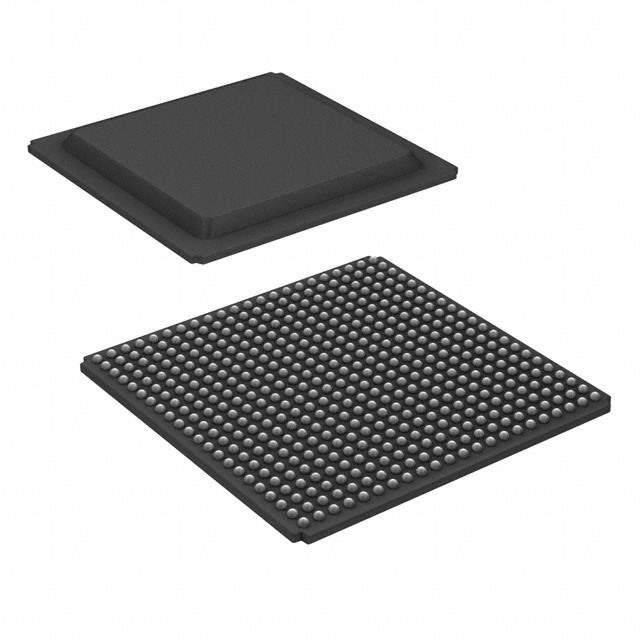

• FGG484 Package: 484-pin Fine-Pitch Ball Grid Array (FBGA) package.

Benefits

• Low Power Consumption: Reduces energy usage and extends battery life.
• High Performance: Delivers fast and efficient processing.
• Flexibility: Allows for the implementation of custom hardware functions.
• Integration: Combines logic, memory, and processing capabilities in a single device.
• Reduced System Cost: Can reduce system cost by integrating multiple functions into a single device.
• Time-to-Market: Enables rapid prototyping and development.

Additional Details

The XC7A15T-1FGG484I features 16,640 logic cells, 540 KB of block RAM, and 40 DSP slices. It operates at a core voltage of 1.0V and supports a wide range of I/O standards. The device is typically programmed using Xilinx's Vivado design tools. The -1 speed grade indicates a specific performance level within the Artix-7 family. The I at the end indicates that the device is rated for industrial temperature range (-40°C to +100°C).
