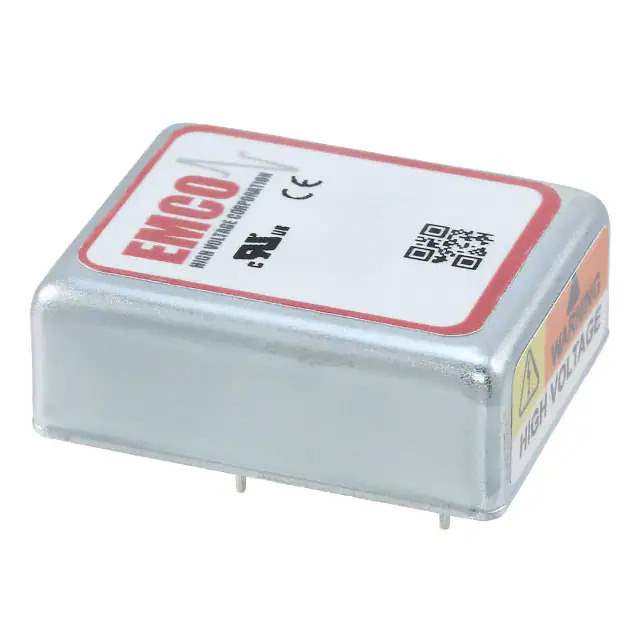

C06 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series XP EMCO - C (1W)
Package Box
Product Status Active
Type High Voltage - Non-Isolated Module
Number of Outputs 1
Voltage - Input (Min) 11.5V
Voltage - Input (Max) 16V
Voltage - Output 1 600V
Current - Output (Max) 1.67mA
Power (Watts) 1 W
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Through Hole
Package / Case 5-DIP Module
Size / Dimension 1.40" L x 1.11" W x 0.50" H (35.6mm x 28.2mm x 12.7mm)
Standard Number 62368-1
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 575597-C06
Ultra Librarian 3D Model Ultra Librarian C06 CAD Model

Description

The XP EMCO - C (1W) is a high voltage non-isolated module power supply.

  • Features: SCP (Short Circuit Protection)
  • Power Rating: 1W
  • Output: Single output
  • Maximum Output Current: 1.67mA
  • Input Voltage Range: From 11.5V to 16V
  • Output Voltage: 600V
  • Application: Designed for ITE (Commercial) applications
  • Mounting: Through hole
  • Package: 5-DIP module package
  • Operating Temperature: -10°C to 60°C
  • Manufacturer: XP Power
  • Status: Active
  • Standard: Complies with the standard number 62368-1.
