Analog Devices Inc. LTM4644MPY#PBF Overview

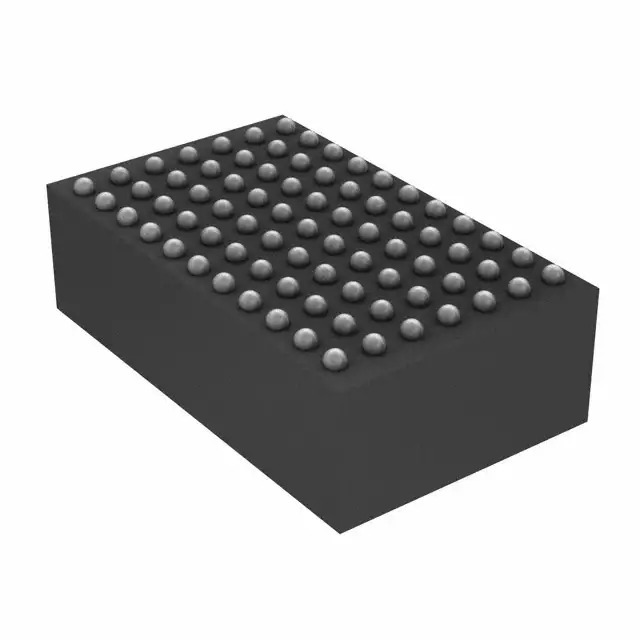

The LTM4644MPY#PBF is a high-performance, quad DC/DC step-down μModule (micromodule) regulator from Analog Devices Inc. that is designed to meet the needs of space-constrained and power-dense applications. This advanced product integrates four independent 4A or dual 8A output switching regulators in a compact, 9mm x 15mm x 5.01mm BGA (Ball Grid Array) package, making it an ideal solution for applications such as telecommunications, data processing, storage, industrial, and medical equipment.

Key Features

• Wide Input Voltage Range: The LTM4644MPY#PBF operates from a 4V to 14V input voltage range, making it versatile for various power supply conditions.
• Multiple Configurations: It can be configured to provide four independent 4A outputs or two dual 8A outputs, offering flexibility in power management design.
• High Efficiency: This μModule regulator boasts high efficiency, which is critical for reducing heat dissipation and improving system performance.
• Integrated Components: The device includes switching controllers, power FETs, inductors, and all supporting components, simplifying design and reducing external part count.
• Advanced Packaging: The BGA package enhances thermal performance and allows for a compact footprint on the PCB.
• Adjustable Switching Frequency: The switching frequency is adjustable from 250kHz to 1.3MHz and can be synchronized to an external clock, providing design flexibility and optimization of component size and efficiency.

Performance and Reliability

The LTM4644MPY#PBF is designed for high reliability and performance under extreme conditions. It operates at a junction temperature range of -55°C to +125°C, ensuring stability and functionality in a wide range of environmental conditions. The device also features overvoltage, overcurrent, and overtemperature protection, contributing to the overall system robustness and reliability.

Easy Integration

With its minimal external components and ease of use, the LTM4644MPY#PBF simplifies complex power supply design challenges. It is optimized for point-of-load applications where space is at a premium, and multiple supply rails are required. The inclusion of a comprehensive datasheet and support materials from Analog Devices Inc. ensures that engineers can integrate this μModule regulator into their designs with confidence and efficiency.

Overall, the LTM4644MPY#PBF is a powerful, reliable, and versatile solution for modern electronic systems requiring high-density, multi-output power supplies.
